WHZ05Z120-10005

WHZ05Z120-00380-00730CN0000, 直线运动单元, WHZ50, Belt, Moving Profile Drive, 滚轮 Guide, 0.05 毫米 Repeatability, 380 毫米 Stroke, 730 毫米 Overall Length, 单个标准滑块, 120 毫米 Travel Per Shaft Rev, Shaft On Left Side With Keyway, 670 N, 6500 Maximum Linear Speed

取代
带驱动
外部导向轮
速度最高10 m/s

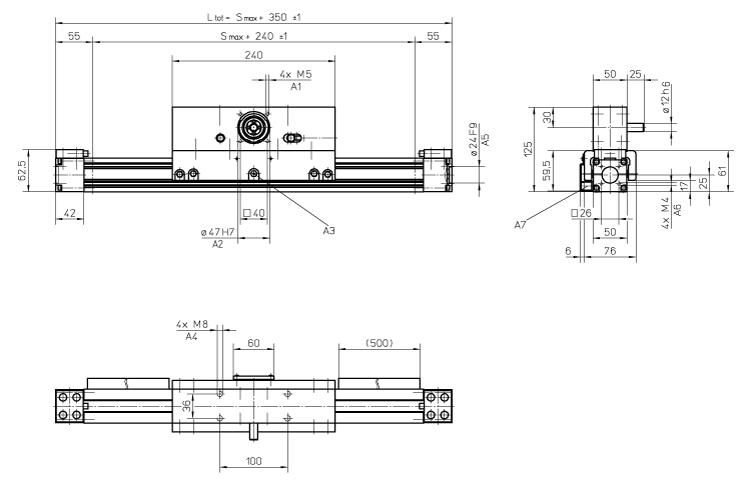

Dimensions

尺寸	价值
Ltot	730 毫米
Smax（行程）	380 毫米
Travel Per Shaft Rev	120 毫米

Specifications

Specifications	价值
Belt Type	16 ATL 5
Carriage Type	单个标准滑块
Drive	Belt, Moving Profile
Guide	滚轮
Profile size (width × height)	50 x 50 mm
Shaft Configuration	Shaft On Left Side With Keyway
Shaft Orientation	Right Angle
Shaft Quantity	Single Shaft
Weight	9 kg
保护选项	Standard Protection
额定行程	380 毫米

Performance

Performance	价值
Input speed, maximum	3250 转每分
Maximum Acceleration	40 m/s²
Maximum Linear Speed	6500
Repeatability	0.05 毫米
负载，动态	670 N

WHZ05Z120-10005

Dimensions

Specifications

Performance

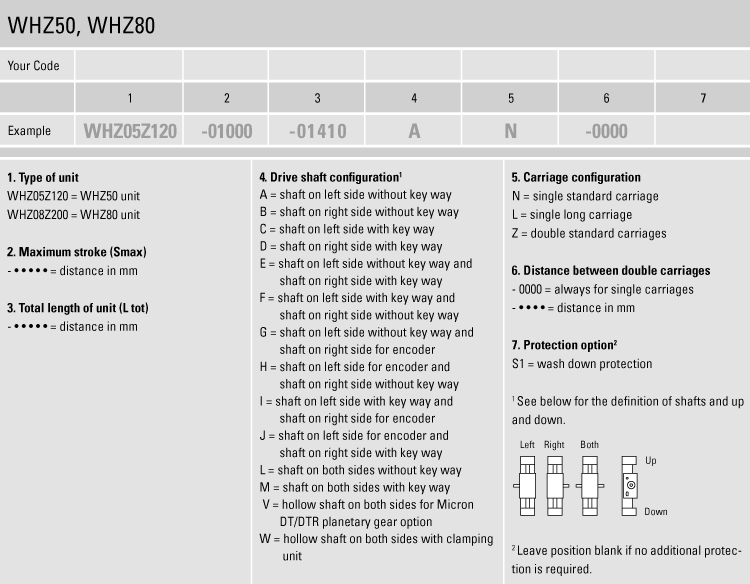

Order Code
