WM04S005-00310-00580-CN0000-69

直线运动单元, WM40, 滚珠丝杆 Drive, 滚珠 Guide, 0.02 毫米 Repeatability, 无预加载, 310 毫米 Stroke, 580 毫米 Overall Length, 单个标准滑块, 5 毫米 Travel Per Shaft Rev, Single Shaft With Keyway, 250 Maximum Linear Speed

取代
专利导轨系统
专利自调整塑料带盖
专列丝杠支撑系统

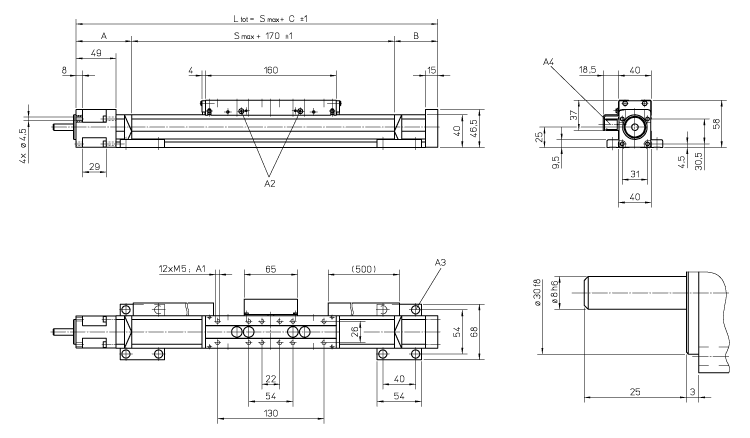

Dimensions

尺寸	价值
Ltot	580 毫米
Smax（行程）	310 毫米
Travel Per Shaft Rev	5 毫米

Specifications

Specifications	价值
Carriage Type	单个标准滑块
Drive	滚珠丝杆
Guide	滚珠
Profile size (width × height)	40 x 40 mm
Screw Nut Type	无预加载
Shaft Configuration	Single Shaft With Keyway
Shaft Orientation	Inline
Shaft Quantity	Single Shaft
Weight	2.8 kg
保护选项	Standard Protection

Performance

Performance	价值
Input speed, maximum	3000 转每分
Maximum Acceleration	20 m/s²
Maximum Linear Speed	250
Repeatability	0.02 毫米
