Ball Nut

Ball Nut, 32 mm X 20 mm, Flanged, Wiper Included, Round, No Safety Feature, 偏转装置, 47200 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
D1	56.00 mm (2.205 in)
D6	86.00 mm (3.386 in)
L	83.00 mm (3.268 in)
L1	25.00 mm (0.984 in)
L3	15.00 mm (0.591 in)
L7	12.00 mm (0.472 in)
L8	65.00 mm (2.559 in)

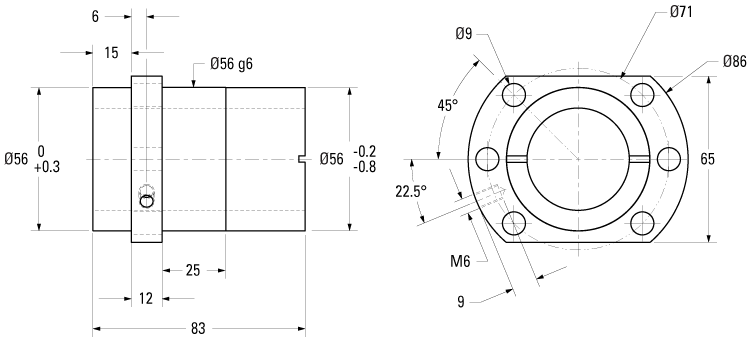

dimensions

Dimension	Value
D1	56.00 mm (2.205 in)
D6	86.00 mm (3.386 in)
L	83.00 mm (3.268 in)
L1	25.00 mm (0.984 in)
L3	15.00 mm (0.591 in)
L7	12.00 mm (0.472 in)
L8	65.00 mm (2.559 in)
