ADAPTER-KARDAN KAR-1 2005

Trunion adapter for mounting a flanged ball or lead screw nut.
Hole pattern in accordance with DIN69051

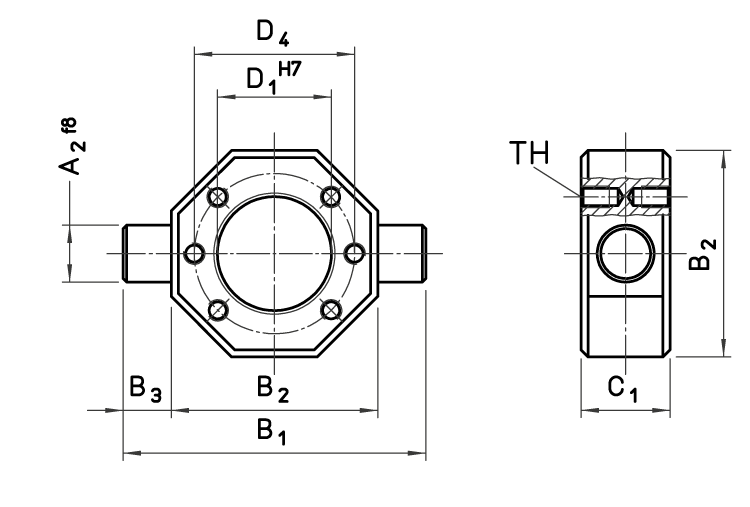

Dimensions

dimensions

尺寸	价值
[A2]	16 毫米
[B1]	85 毫米
[B2]	58 毫米
[B3]	13.5 毫米
[C1]	25 毫米
[D1]	36 毫米
[D4]	47 毫米
[TH]	M6x12

Specifications

Specifications	价值
Model Code	KAR-1 2005
Temperature Max	300 °F

Performance

Order Code
