DCG24-2U-0280

DCG24-2U-0280
DCG24-2U-0280

执行器, LC2000/3000 CONTROL UNIT; TWO-AXIS SYNC


  • Control for operation of 24V Actuator
  • Small and light weight control operated via a control pendant which is ordered separately
  • Built in Electronic Limit Switches (ELS) stop the actuator automatically at end of stroke or mid stroke stall
  • The control pendant is ordered separately
  • The “Control to Actuator” cable is ordered separately and comes in several version depending of the type of actuator being used
  • 24 Vdc 13 Amp max

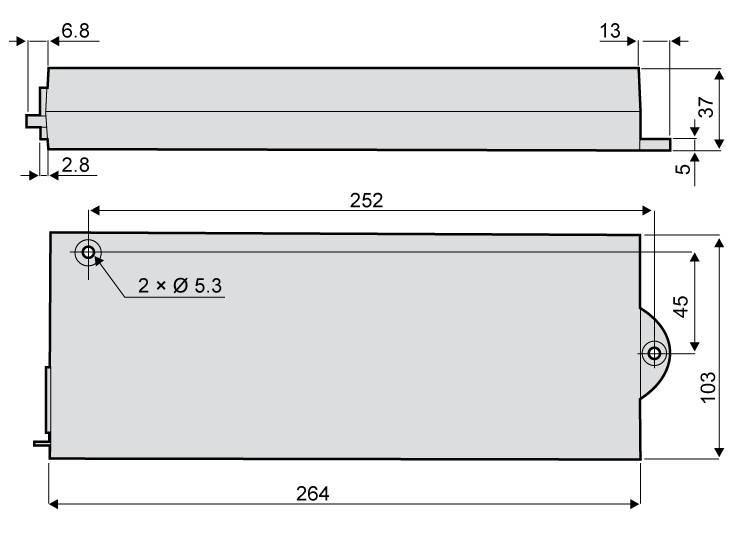

Dimensions

dimensions

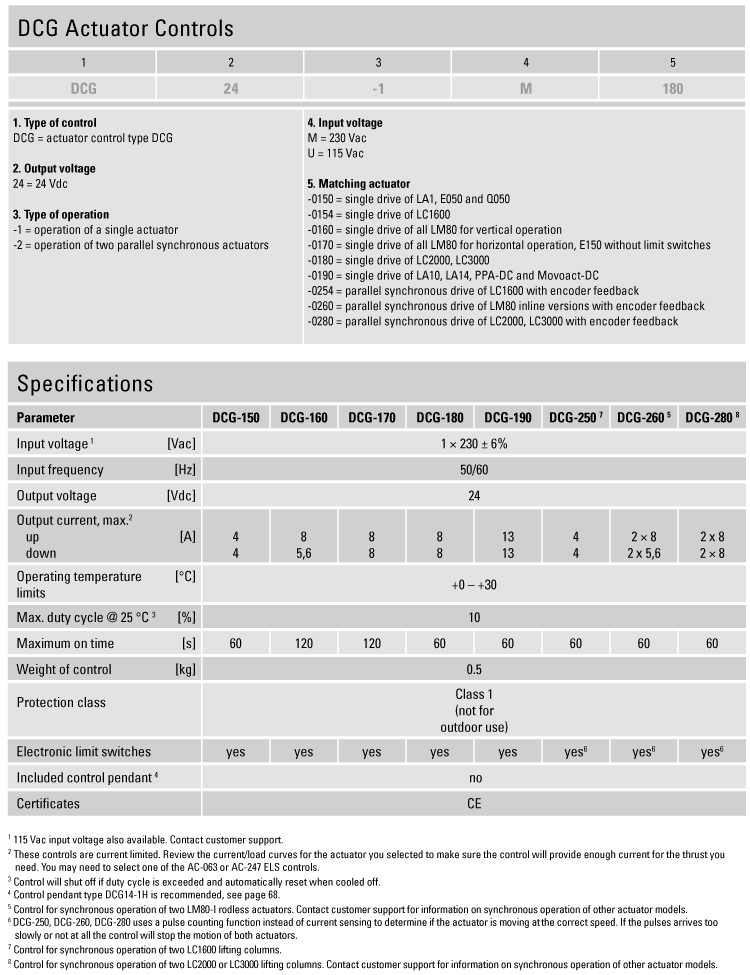

Specifications

Specifications价值
Matching ActuatorParallel Synchronous drive of LC2000, LC3000, LM80-I with encoder feedback
Weight0.5 kg
电压115 交流电压伏特
电压24 直流电压伏特

Performance

Performance价值
Duty Cyle10 %
