K2EP1.0G05-24V-BR-08R90

K2EP1.0G05-24V-BR-08R90
K2EP1.0G05-24V-BR-08R90

执行器, B-Track, 24 直流电压伏特, 300 磅力, Connector, 后侧接头处于 90°位置


  • Protective coatings and O-ring seals throughout.
  • Hybrid Acme style nut and screw design, no brake needed.
  • Ball detent over load clutch.
  • Thermal overload incorporated into the motor.
  • Heavy wall construction
  • Heat treated gears

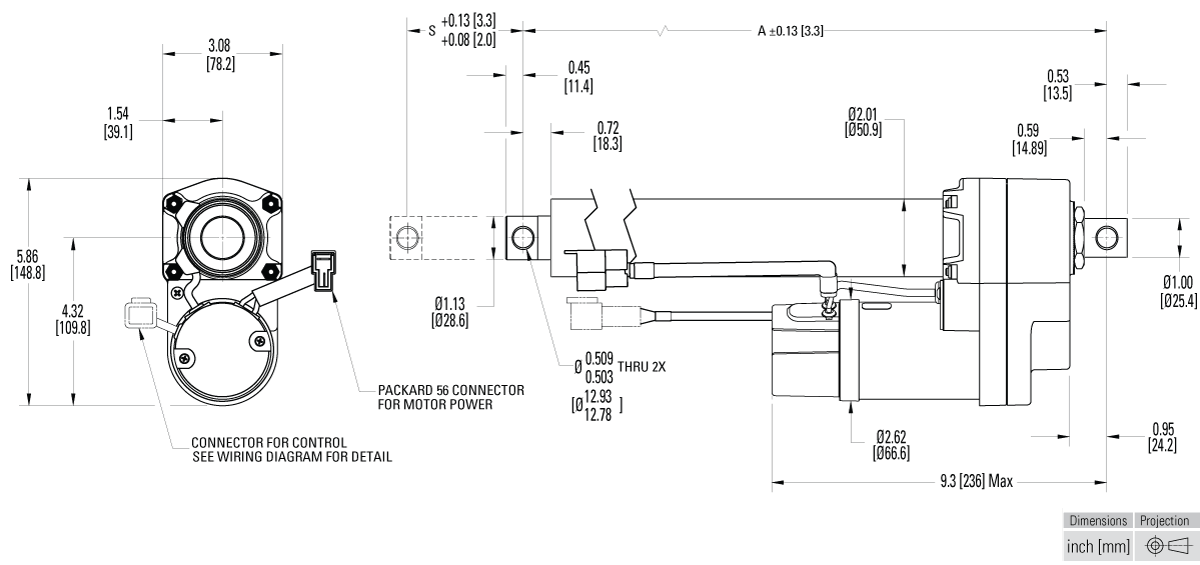

Dimensions

dimensions
尺寸价值
[A]14.32 英寸
[S]8 英寸

Specifications

Specifications价值
Anti-rotation否
Brake无(自锁)
ConnectionConnector
Connector TypePackard Electric 56 series 2984883 with terminal 2962987
Temperature Max150 °F
Temperature Min-20 °F
UPC编号883680332193
Weight10 lb
材质铜;钢;锌;铝合金;塑料
电压24 直流电压伏特
防护等级IP65/IP69K
丝杠类型爱克米螺杆
转接头位置后侧接头处于 90°位置

Performance

Performance价值
Duty Cyle25 %
负载,动态300 磅力
负载,最大静态3000 磅力
