KGF-L-3210-RH-E-KK

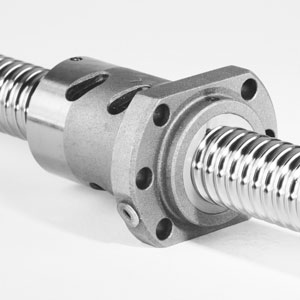

Ball Nut

Ball Nut, 32 mm X 10 mm, Flanged, Wiper Included, Round, No Safety Feature, 单列式, 19300 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
D1	50.00 mm (1.969 in)
D6	80.00 mm (3.150 in)
L	105.50 mm (4.154 in)
L1	16.00 mm (0.630 in)
L3	6.00 mm (0.236 in)
L7	12.00 mm (0.472 in)
L8	62.00 mm (2.441 in)

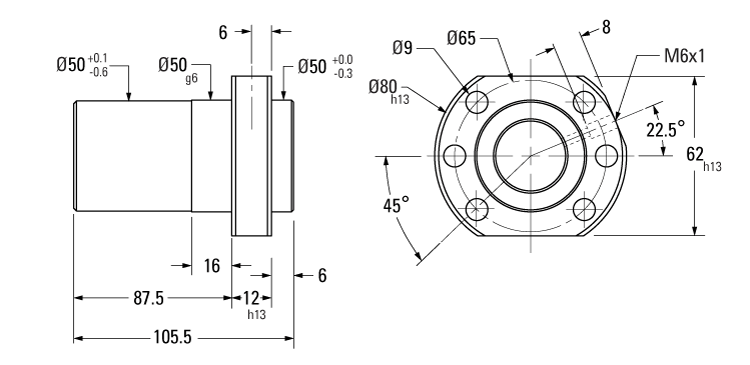

dimensions

Dimension	Value
D1	50.00 mm (1.969 in)
D6	80.00 mm (3.150 in)
L	105.50 mm (4.154 in)
L1	16.00 mm (0.630 in)
L3	6.00 mm (0.236 in)
L7	12.00 mm (0.472 in)
L8	62.00 mm (2.441 in)
