KGF-L-4005-RH-E-KK

Ball Nut

Ball Nut, 40 mm X 5 mm, Flanged, Wiper Included, Round, No Safety Feature, 单列式, 26300 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
D1	63.00 mm (2.480 in)
D6	93.00 mm (3.661 in)
L	97.00 mm (3.819 in)
L1	10.00 mm (0.394 in)
L3	7.00 mm (0.276 in)
L7	14.00 mm (0.551 in)
L8	70.00 mm (2.756 in)

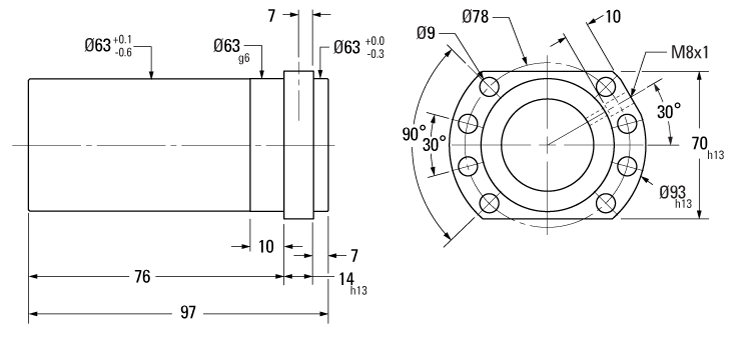

dimensions

Dimension	Value
D1	63.00 mm (2.480 in)
D6	93.00 mm (3.661 in)
L	97.00 mm (3.819 in)
L1	10.00 mm (0.394 in)
L3	7.00 mm (0.276 in)
L7	14.00 mm (0.551 in)
L8	70.00 mm (2.756 in)

规格

Specification	Value
Diameter	40 mm
导程	5.0 mm
Nut Material	Alloy Steel
Nut Style	KGF
Wiper	Included
Flange	Integral
Screw Part Number	0205000261-RL6000
Number Of Starts	1
Total Weight	55.300 kg

性能

Performance	Value
Load, Dynamic	26,300 N (5,912 lbf)
Load, Static	59 kN (13,309 lbf)
