旋转螺母

Rotating Nut, NEMA 11, Single stack, 0.510 Amp Ø4.000 mm x 8.000 mm lead screw, 102.000 mm length, Standard accuracy, C5 front end machining, A0 back end machining

Min: 32.004 mm Max: 203.2 mm

A hybrid stepper motor and a precision lead screw together in one compact envelope.
Higher torque density than the competition.
Improved efficiency.
Reduced noise.

尺寸

Dimension	Value
Ls	102.00 mm (4.02 in)
Lm	32.00 mm (1.260 in)
L3F	6.35 mm (0.25 in)
THDF	M2.5X0.45

Dimension	Value
Ls	102.00 mm (4.02 in)
Lm	32.00 mm (1.260 in)
L3F	6.35 mm (0.25 in)
THDF	M2.5X0.45

规格

Specification	Value
Motor Frame Size	NEMA 11
Motor Stack Size	Single
Motor Body Length	32 mm / 1.26 in
Motor Current Rating	0.51 amps
Recommended Drive Current	0.71 amps
Connector Type	Molex 53253-0670
Holding Torque	0.07 N·m / 9.35 ozf·in
Step Angle	1.8°
Voltage Per Phase	3.85 V
Resistance	7.54 Ω
Inductance	5.22 mH
Power Draw	1.96 W
Rotor Inertia	0.26 g/cm² / 0.06 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.11 kg / 0.24 lbs
Axial Preload	89.00 N / 20.01 lbf
Lead Screw Part Number	SRA8-4X1M
Lead Screw Diameter	4.00 mm / 0.157 in
Linear Travel per Revolution	8.00 mm / 0.315 in
Linear Travel Per Step	0.0400 mm / 0.00157 in
Thread Direction	RH
Stroke Length	102.00 mm / 4.02 in
Accuracy Grade	Standard
Lead Accuracy	250 µm/300mm / 0.01 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	C5 = M2.5x0.45 x 6.35 mm threaded end
Rear End Machining	A0 = No Machining
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

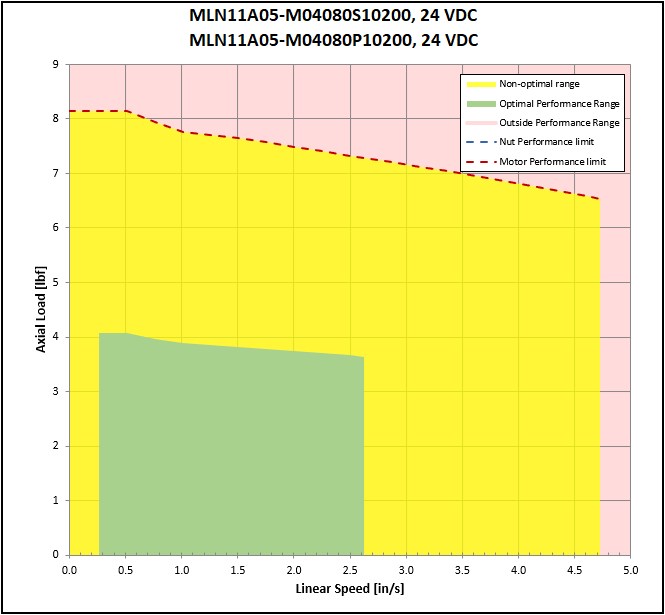

性能

Performance

Performance

Performance	Value
Max Dynamic Load @ 12v	17.4 N / 3.9 lbf
Max Dynamic Load @ 24v	18.2 N / 4.1 lbf
Max Dynamic Load @ 40v	18.7 N / 4.2 lbf
Dynamic Load at Max Speed @ 12v	13.8 N / 3.1 lbf @ 66.80 mm/s / 2.63 in/s
Dynamic Load at Max Speed @ 24v	16.0 N / 3.6 lbf @ 66.80 mm/s / 2.63 in/s
Dynamic Load at Max Speed @ 40v	16.5 N / 3.7 lbf @ 66.80 mm/s / 2.63 in/s
Recommended Max Axial Load	89 N / 20 lbf
Max Case Temperature	140 °F / 60 C
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C
