MLN11A10-180050P04000N-C1A0-XXX
没有找到想要的产品？请使用产品选择工具
旋转螺母
Rotating Nut, NEMA 11, Single stack, 1.000 Amp Ø0.1875 in x 0.050 in lead screw, 4.000 in length, Precision accuracy, C1 front end machining, A0 back end machining
梯形丝杠长度:
Min: 1.26 in Max: 8.0 in
配置编码器
- A hybrid stepper motor and a precision lead screw together in one compact envelope.
- Higher torque density than the competition.
- Improved efficiency.
- Reduced noise.
| Dimension | Value |
|---|---|
| Ls | 101.60 mm (4.00 in) |
| Lm | 32.00 mm (1.260 in) |
| L3F | 6.35 mm (0.25 in) |
| THDF | #4-40 |

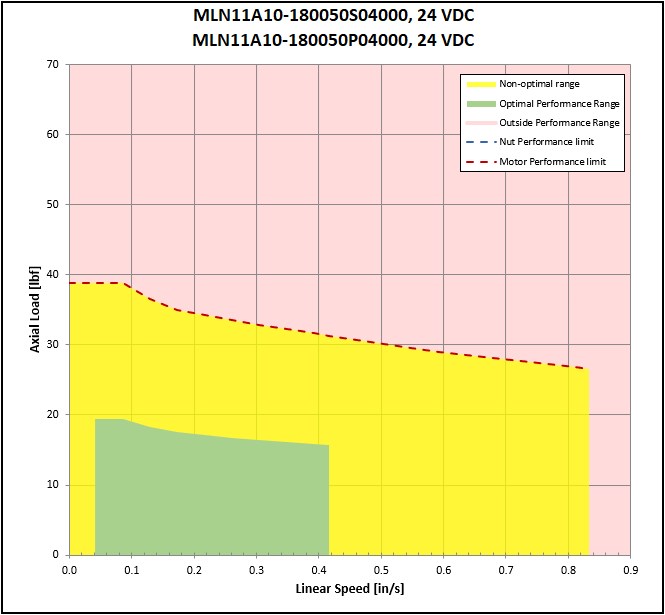

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 81.0 N / 18.2 lbf |
| Max Dynamic Load @ 24v | 85.9 N / 19.3 lbf |
| Max Dynamic Load @ 40v | 87.6 N / 19.7 lbf |
| Dynamic Load at Max Speed @ 12v | 55.2 N / 12.4 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 24v | 64.9 N / 14.6 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 40v | 70.3 N / 15.8 lbf @ 10.67 mm/s / 0.42 in/s |
| Recommended Max Axial Load | 89 N / 20 lbf |
| Max Case Temperature | 60 °C / 140 °F |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
