MLN14A08-250500S08000N-C2A0-XXX
没有找到想要的产品？请使用产品选择工具
旋转螺母
Rotating Nut, NEMA 14, Single stack, 0.880 Amp Ø0.250 in x 0.500 in lead screw, 8.000 in length, Standard accuracy, C2 front end machining, A0 back end machining
梯形丝杠长度:
Min: 1.34 in Max: 16.0 in
配置编码器
- A hybrid stepper motor and a precision lead screw together in one compact envelope.
- Higher torque density than the competition.
- Improved efficiency.
- Reduced noise.
| Dimension | Value |
|---|---|
| Ls | 203.20 mm (8.00 in) |
| Lm | 34.04 mm (1.340 in) |
| L3F | 6.35 mm (0.25 in) |
| THDF | #8-32 |

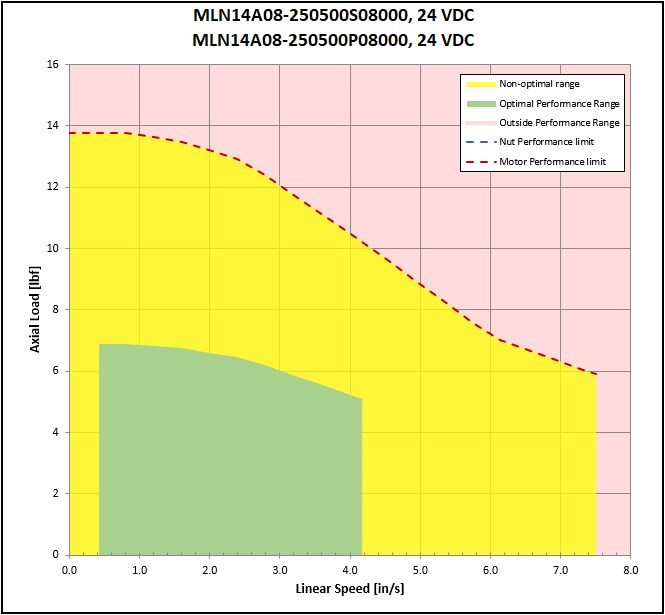

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 29.8 N / 6.7 lbf |
| Max Dynamic Load @ 24v | 30.2 N / 6.8 lbf |
| Max Dynamic Load @ 40v | 30.2 N / 6.8 lbf |
| Dynamic Load at Max Speed @ 12v | 11.1 N / 2.5 lbf @ 105.92 mm/s / 4.17 in/s |
| Dynamic Load at Max Speed @ 24v | 22.2 N / 5.0 lbf @ 105.92 mm/s / 4.17 in/s |
| Dynamic Load at Max Speed @ 40v | 28.0 N / 6.3 lbf @ 105.92 mm/s / 4.17 in/s |
| Recommended Max Axial Load | 222 N / 50 lbf |
| Max Case Temperature | 80 °C / 176 °F |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
