MLS11A05-250125P08000N-A000-RS2
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 11, Single stack, 0.510 Amp Ø0.250 in x 0.125 in lead screw, 8.000 in length, Precision accuracy, A0 front end machining, RSF2500
梯形丝杠长度:
Min: 0.75 in Max: 16.0 in
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 203.20 mm (8.00 in) |
| Lm | 32.00 mm (1.260 in) |
| Ln | 19.05 mm (0.750 in) |
| AN | 12.70 mm (0.50 in) |
| BN | 19.05 mm (0.75 in) |
| DN | 25.40 mm (1.00 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 3.81 mm (0.15 in) |
| IN | 7.87 mm (0.31 in) |
| BCDN | 19.05 mm (0.75 in) |

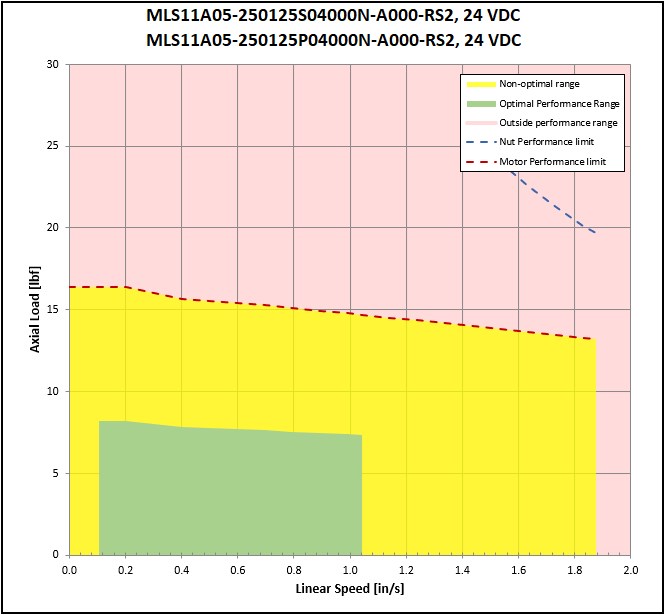

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 34.3 N / 7.7 lbf |
| Max Dynamic Load @ 24v | 36.0 N / 8.1 lbf |
| Max Dynamic Load @ 40v | 36.9 N / 8.3 lbf |
| Dynamic Load at Max Speed @ 12v | 27.1 N / 6.1 lbf @ 26.42 mm/s / 1.04 in/s |
| Dynamic Load at Max Speed @ 24v | 31.6 N / 7.1 lbf @ 26.42 mm/s / 1.04 in/s |
| Dynamic Load at Max Speed @ 40v | 32.9 N / 7.4 lbf @ 26.42 mm/s / 1.04 in/s |
| Recommended Max Axial Load | 89 N / 20 lbf |
| Max Case Temperature | 60 °C / 140 °F |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
