MLS11A05-M06010P20300N-A000-RS2

旋转丝杠

Rotating Screw, NEMA 11, Single stack, 0.510 Amp Ø6.000 mm x 1.000 mm lead screw, 203.000 mm length, Precision accuracy, A0 front end machining, RSF2500

Min: 19.05 mm Max: 406.4 mm

集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
力矩密度比竞争产品更高。
效率更高。
噪音更低。

尺寸

Dimension	Value
Ls	203.00 mm (7.99 in)
Lm	32.00 mm (1.260 in)
Ln	19.05 mm (0.750 in)
AN	12.70 mm (0.50 in)
BN	19.05 mm (0.75 in)
DN	25.40 mm (1.00 in)
EN	3.56 mm (0.14 in)
FN	3.81 mm (0.15 in)
IN	7.87 mm (0.31 in)
BCDN	19.05 mm (0.75 in)

Dimension	Value
Ls	203.00 mm (7.99 in)
Lm	32.00 mm (1.260 in)
Ln	19.05 mm (0.750 in)
AN	12.70 mm (0.50 in)
BN	19.05 mm (0.75 in)
DN	25.40 mm (1.00 in)
EN	3.56 mm (0.14 in)
FN	3.81 mm (0.15 in)
IN	7.87 mm (0.31 in)
BCDN	19.05 mm (0.75 in)

规格

Specification	Value
Motor Frame Size	NEMA 11
Motor Stack Size	Single
Motor Body Length	32 mm / 1.26 in
Motor Current Rating	0.51 amps
Recommended Drive Current	0.71 amps
Connector Type	Molex 53253-0670
Holding Torque	0.07 N·m / 9.35 ozf·in
Step Angle	1.8°
Voltage Per Phase	3.85 V
Resistance	7.54 Ω
Inductance	5.22 mH
Power Draw	1.96 W
Rotor Inertia	0.26 g/cm² / 0.06 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.11 kg / 0.24 lbs
Axial Preload	89.00 N / 20.01 lbf
Lead Screw Part Number	SPR6X1M
Lead Screw Diameter	6.00 mm / 0.236 in
Linear Travel per Revolution	1.00 mm / 0.039 in
Linear Travel Per Step	0.0050 mm / 0.00020 in
Thread Direction	RH
Stroke Length	203.00 mm / 7.99 in
Accuracy Grade	Precision
Lead Accuracy	75 µm/300mm / 0.00 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	A0 = No Machining
Nut Part Number	RSF2500
Nut Mounting Style	法兰
Nut Material	乙缩醛
Max Axial Backlash	0.25 mm / 0.010 in
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

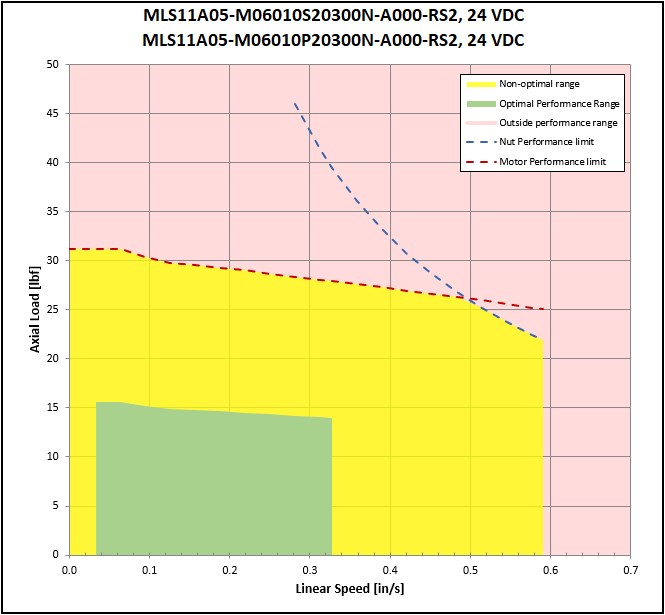

性能

Performance	Value
Max Dynamic Load @ 12v	64.1 N / 14.4 lbf
Max Dynamic Load @ 24v	67.6 N / 15.2 lbf
Max Dynamic Load @ 40v	68.9 N / 15.5 lbf
Dynamic Load at Max Speed @ 12v	50.7 N / 11.4 lbf @ 8.38 mm/s / 0.33 in/s
Dynamic Load at Max Speed @ 24v	58.7 N / 13.2 lbf @ 8.38 mm/s / 0.33 in/s
Dynamic Load at Max Speed @ 40v	61.4 N / 13.8 lbf @ 8.38 mm/s / 0.33 in/s
Recommended Max Axial Load	89 N / 20 lbf
Max Case Temperature	140 °F / 60 C
Minimum Linear Travel Life	127,000,000 mm / 5,000,000 in
Backlash Type	Standard Backlash
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C
