MLS11A10-180050P04000N-A000-RS1
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 11, Single stack, 1.000 Amp Ø0.1875 in x 0.050 in lead screw, 4.000 in length, Precision accuracy, A0 front end machining, RSF1800
梯形丝杠长度:
Min: 0.375 in Max: 8.0 in
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 101.60 mm (4.00 in) |
| Lm | 32.00 mm (1.260 in) |
| Ln | 9.53 mm (0.375 in) |
| AN | 7.95 mm (0.31 in) |
| BN | 9.53 mm (0.38 in) |
| DN | 19.05 mm (0.75 in) |
| EN | 3.30 mm (0.13 in) |
| FN | 3.30 mm (0.13 in) |
| IN | 6.35 mm (0.25 in) |
| BCDN | 12.70 mm (0.50 in) |

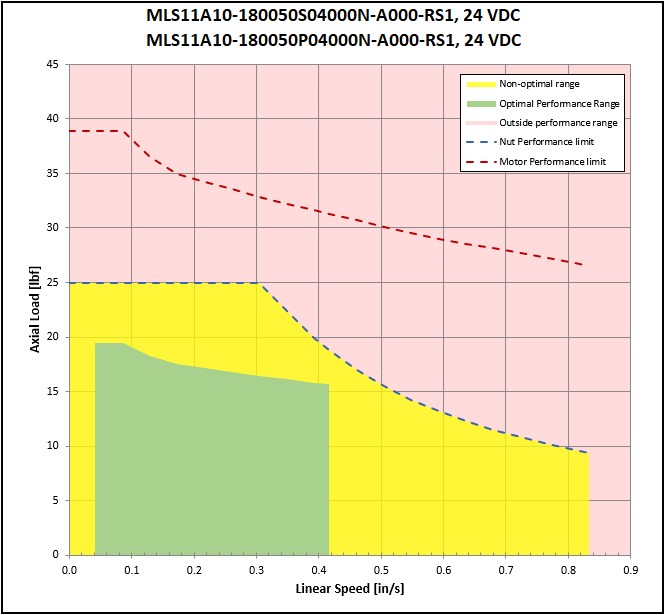

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 81.0 N / 18.2 lbf |
| Max Dynamic Load @ 24v | 85.9 N / 19.3 lbf |
| Max Dynamic Load @ 40v | 87.6 N / 19.7 lbf |
| Dynamic Load at Max Speed @ 12v | 55.2 N / 12.4 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 24v | 64.9 N / 14.6 lbf @ 10.67 mm/s / 0.42 in/s |
| Dynamic Load at Max Speed @ 40v | 70.3 N / 15.8 lbf @ 10.67 mm/s / 0.42 in/s |
| Recommended Max Axial Load | 89 N / 20 lbf |
| Max Case Temperature | 60 °C / 140 °F |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
