MLS23B19-M10050P40600N-A000-RS3

旋转丝杠

Rotating Screw, NEMA 23, Double stack, 1.900 Amp Ø10.000 mm x 5.000 mm lead screw, 406.000 mm length, Precision accuracy, A0 front end machining, RSF3700

Min: 25.4 mm Max: 812.8 mm

集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
力矩密度比竞争产品更高。
效率更高。
噪音更低。

尺寸

Dimension	Value
Ls	406.00 mm (15.98 in)
Lm	65.79 mm (2.590 in)
Ln	25.40 mm (1.000 in)
AN	16.00 mm (0.63 in)
BN	25.40 mm (1.00 in)
DN	31.75 mm (1.25 in)
EN	3.56 mm (0.14 in)
FN	4.83 mm (0.19 in)
IN	10.41 mm (0.41 in)
BCDN	22.23 mm (0.88 in)

Dimension	Value
Ls	406.00 mm (15.98 in)
Lm	65.79 mm (2.590 in)
Ln	25.40 mm (1.000 in)
AN	16.00 mm (0.63 in)
BN	25.40 mm (1.00 in)
DN	31.75 mm (1.25 in)
EN	3.56 mm (0.14 in)
FN	4.83 mm (0.19 in)
IN	10.41 mm (0.41 in)
BCDN	22.23 mm (0.88 in)

规格

Specification	Value
Motor Frame Size	NEMA 23
Motor Stack Size	Double
Motor Body Length	66 mm / 2.59 in
Motor Current Rating	1.90 amps
Recommended Drive Current	2.68 amps
Connector Type	#22 AWG飞线
Holding Torque	1.77 N·m / 251.08 ozf·in
Step Angle	1.8°
Voltage Per Phase	3.80 V
Resistance	2.00 Ω
Inductance	5.84 mH
Power Draw	7.22 W
Rotor Inertia	9.36 g/cm² / 2.13 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.77 kg / 1.70 lbs
Axial Preload	178.00 N / 40.02 lbf
Lead Screw Part Number	SPR2-10X2.5M
Lead Screw Diameter	10.00 mm / 0.394 in
Linear Travel per Revolution	5.00 mm / 0.197 in
Linear Travel Per Step	0.0250 mm / 0.00098 in
Thread Direction	RH
Stroke Length	406.00 mm / 15.98 in
Accuracy Grade	Precision
Lead Accuracy	75 µm/300mm / 0.00 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	A0 = No Machining
Nut Part Number	RSF3700
Nut Mounting Style	法兰
Nut Material	乙缩醛
Max Axial Backlash	0.25 mm / 0.010 in
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

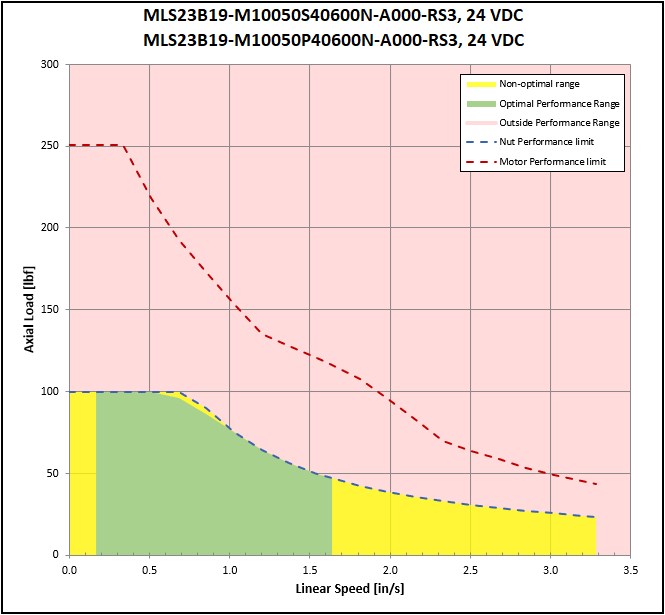

性能

Performance	Value
Max Dynamic Load @ 12v	444.8 N / 100.0 lbf
Max Dynamic Load @ 24v	444.8 N / 100.0 lbf
Max Dynamic Load @ 40v	444.8 N / 100.0 lbf
Dynamic Load at Max Speed @ 12v	92.5 N / 20.8 lbf @ 41.66 mm/s / 1.64 in/s
Dynamic Load at Max Speed @ 24v	192.6 N / 43.3 lbf @ 41.66 mm/s / 1.64 in/s
Dynamic Load at Max Speed @ 40v	192.6 N / 43.3 lbf @ 41.66 mm/s / 1.64 in/s
Recommended Max Axial Load	890 N / 200 lbf
Max Case Temperature	176 °F / 80 C
Minimum Linear Travel Life	127,000,000 mm / 5,000,000 in
Backlash Type	Standard Backlash
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C
