WM06D020-00250-01500-AZ0790-58

直线运动单元, WM60, 滚珠丝杆 Drive, 滚珠 Guide, 0.01 毫米 Repeatability, 双螺母预加载, 250 毫米 Stroke, 1500 毫米 Overall Length, 双标准滑块, 790 毫米 between carriages, 20 毫米 Travel Per Shaft Rev, Single Shaft Without Keyway, 1000 Maximum Linear Speed

取代
专利导轨系统
专利自调整塑料带盖
专列丝杠支撑系统

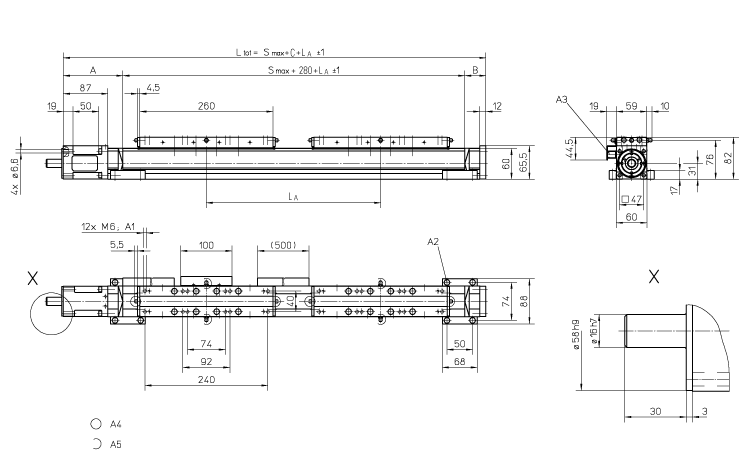

Dimensions

尺寸	价值
[LA] 滑块间距	790 毫米
Ltot	1500 毫米
Smax（行程）	250 毫米
Travel Per Shaft Rev	20 毫米

Specifications

Specifications	价值
Carriage Type	双标准滑块
Drive	滚珠丝杆
Guide	滚珠
Profile size (width × height)	60 x 60 mm
Screw Nut Type	双螺母预加载
Shaft Configuration	Single Shaft Without Keyway
Shaft Orientation	Inline
Shaft Quantity	Single Shaft
Weight	16.9 kg
保护选项	Standard Protection

Performance

Performance	价值
Input speed, maximum	3000 转每分
Maximum Acceleration	20 m/s²
Maximum Linear Speed	1000
Repeatability	0.01 毫米
