Ball Nut

Ball Nut, 16 mm X 5 mm, Wiper Included, Round, No Safety Feature, 按钮, 12100 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

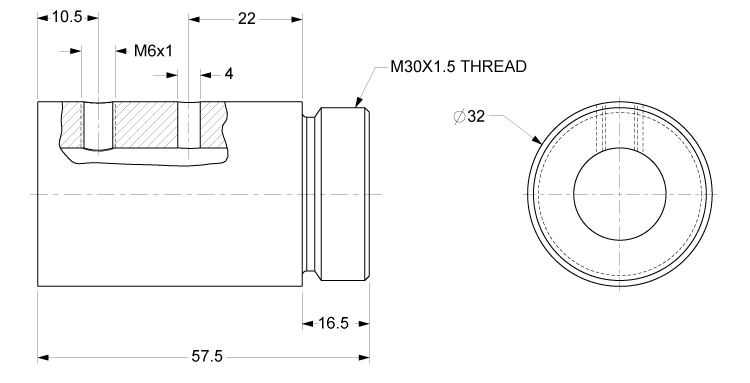

尺寸

Dimension	Value
Unit Of Measure	All length values in: millimeters

dimensions

Dimension	Value
Unit Of Measure	All length values in: millimeters

规格

Specification	Value
Diameter	16 mm
导程	5.0 mm
Nut Material	Alloy Steel
Nut Style	ZG
Wiper	Included
Screw Part Number	0205000315-RL6000
Number Of Starts	1
Total Weight	0.220 kg

性能

Performance

Performance

Performance

Performance	Value
Load, Dynamic	12,100 N (2,720 lbf)
Load, Static	15 kN (3,260 lbf)
