0215200295

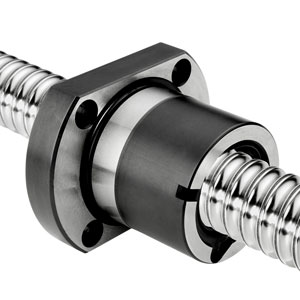

Ball Nut

Ball Nut, 12 mm X 10 mm, Flanged, Wiper Included, Round, No Safety Feature, 端盖, 4900 N

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
D1	24.00 mm (0.945 in)
D4	32.00 mm (1.260 in)
D6	40.00 mm (1.575 in)
L1	9.50 mm (0.374 in)
L2	27.50 mm (1.083 in)
L6	5.00 mm (0.197 in)
L7	8.00 mm (0.315 in)
L9	6.00 mm (0.236 in)
L10	4.00 mm (0.157 in)

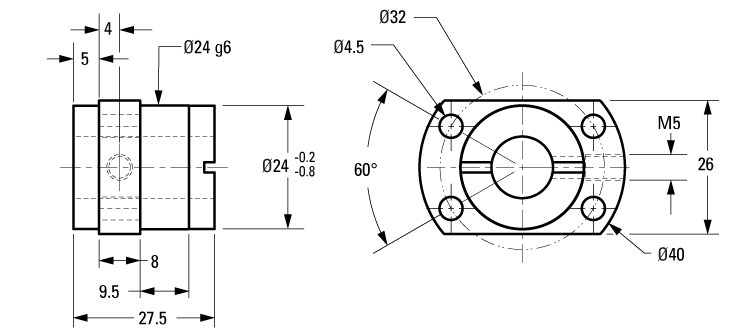

dimensions

Dimension	Value
D1	24.00 mm (0.945 in)
D4	32.00 mm (1.260 in)
D6	40.00 mm (1.575 in)
L1	9.50 mm (0.374 in)
L2	27.50 mm (1.083 in)
L6	5.00 mm (0.197 in)
L7	8.00 mm (0.315 in)
L9	6.00 mm (0.236 in)
L10	4.00 mm (0.157 in)
