0215200299

0215200299
Ball Nut

Ball Nut, 50 mm X 20 mm, Flanged, Wiper Included, Round, No Safety Feature, 偏转装置, 78800 N


  • 仅螺母
  • 经过质量检测,确保可靠的性能
  • 具有可靠的精度和可重复性,且价格实惠

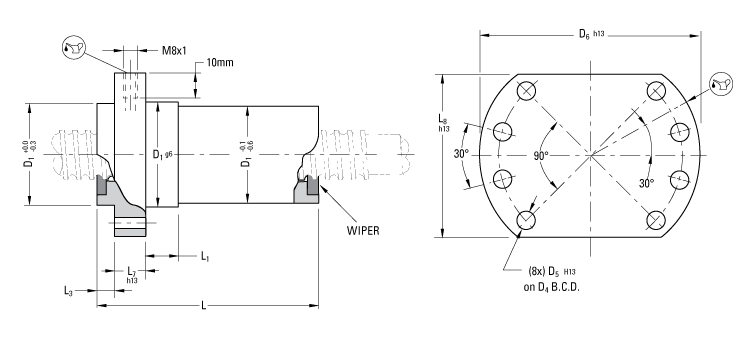

尺寸

尺寸
Dimension Value
D1 75.00 mm (2.953 in)
D6 110.00 mm (4.331 in)
L 85.00 mm (3.346 in)
L1 16.00 mm (0.630 in)
L3 22.00 mm (0.866 in)
L7 16.00 mm (0.630 in)
L8 85.00 mm (3.346 in)
