1BA08BH0L

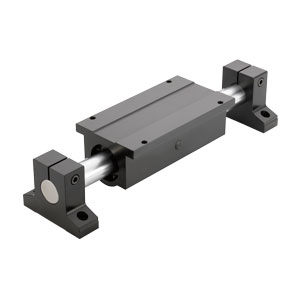

直线导轨, 1BA, Round Shaft, End supported, Low Support, ASB, 1 Twin Pillow block, 0.500 英寸, One Guide Shaft, 530 磅力 Dynamic Load Capacity

末端支撑导向轴组件（英制）组成：
一个双轴承座，闭合型
2个ASB轴支撑
一个60 Case®导向轴

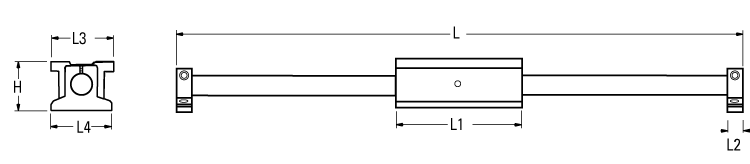

Dimensions

dimensions

尺寸	价值
[d] 轴，标称直径	0.5 英寸
[H]	1.562 英寸
[L1]	3.5 英寸
[L2]	0.63 英寸
[L3]	2 英寸
[L4]	2 英寸

Specifications

Specifications	价值
Pillow Block or Carriage	1 Twin Pillow block
Shaft Style	Round Shaft
Support	End supported, Low Support
Temperature Max	185 °F
材质	钢；铝合金；塑料

Performance

Performance	价值
负载能力，动态	530 磅力
