1CA20HA0L12

1CA20HA0L12
1CA20HA0L12

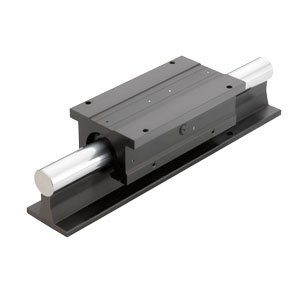

直线导轨, 1CA, Round Shaft, Continuously supported, Standard Profile, SRA, 1 Twin Pillow block, 1.250 英寸, One Guide Shaft, 3730 磅力 Dynamic Load Capacity


  • 连续支撑导向轴组件(英制)组成:
  • 一个双轴承座,开口型
  • 1个SRA连续轴支撑
  • 一个60 Case®导向轴

Dimensions

dimensions
尺寸价值
[d] 轴,标称直径1.25 英寸
[H]3.625 英寸
[L]12 英寸
[L1]7.5 英寸
[L3]4 英寸
[L4]2.5 英寸
Smax(行程)4.5 英寸

Specifications

Specifications价值
Pillow Block or Carriage1 Twin Pillow block
Shaft StyleRound Shaft
SupportContinuously supported, Standard Profile
Temperature Max185 °F
Weight11.4 lb
材质钢;铝合金;塑料

Performance

Performance价值
负载能力,动态3730 磅力
