1NAM08NM0L

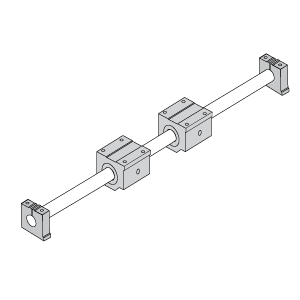

直线导轨, 1NA, Round Shaft, End supported, Low Support, ASB, 2 Pillow Blocks, 8 毫米, One Guide Shaft, 100 磅力 Dynamic Load Capacity

Lead Time: 2 Weeks

each Costs associated with shipping, packaging, and import taxes/duty not included.

末端支撑导向轴组件（公制）组成：
两个单轴承座，闭合型，公制
2个ASBM轴支撑
一个60 Case®导向轴

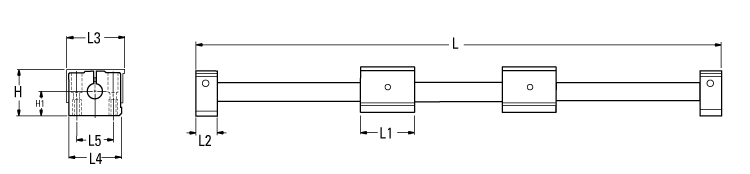

Dimensions

dimensions

尺寸	价值
[d] 轴，标称直径	8 毫米
[H]	30 毫米
[H1]	15 毫米
[L1]	32 毫米
[L2]	18 毫米
[L3]	35 毫米
[L4]	32 毫米
[L5]	22 毫米

Specifications

Specifications	价值
Pillow Block or Carriage	2 Pillow Blocks
Shaft Style	Round Shaft
Support	End supported, Low Support
Temperature Max	185 °F
材质	钢；铝合金；塑料

Performance

Performance	价值
负载能力，动态	100 磅力

Order Code

order code
