1VA16HA0L

1VA16HA0L
1VA16HA0L

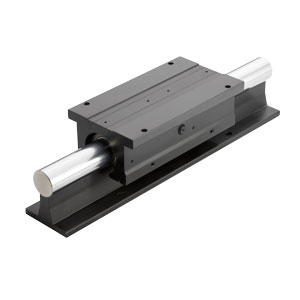

直线导轨, 1VA, Round Shaft, Continuously supported, Standard Profile, SRA, 1 Twin Pillow block, 1.000 英寸, One Guide Shaft


  • 连续、末端支撑或无支撑导向轴组件(英制)组成:
  • 一个双轴承座,开口型,FluoroNyliner 轴承座
  • 1个SRA连续轴支撑
  • 一个不锈钢60 Case®导向轴

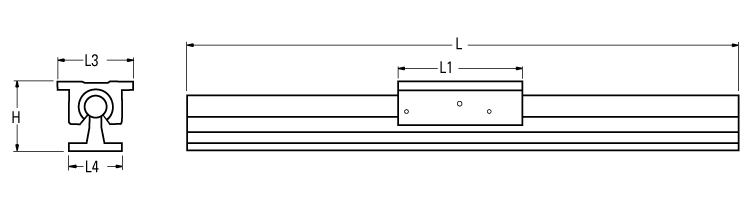

Dimensions

dimensions
尺寸价值
[d] 轴,标称直径1 英寸
[H]2.937 英寸
[L1]6 英寸
[L3]3.25 英寸
[L4]2.13 英寸

Specifications

Specifications价值
Pillow Block or Carriage1 Twin Pillow block
Shaft StyleRound Shaft
SupportContinuously supported, Standard Profile
Temperature Max550 °F
材质钢;铝合金;塑料

Performance

Performance价值
负载能力,静态7000 磅力
