DT115-004-S-RM115-52S (SPL. O/P, SPL. I/P PINION) (SPECIAL RM), 减速机, True Planetary行星齿轮减速机, DuraTRUE, 尺寸 115, 4:1 传动比, 8 弧-分 侧隙, Spur gearing, SPL. O/P, SPL. I/P PINION, 直连 不锈钢输出轴,阳极电镀铝合金外壳, 特别


  • 特别
  • RediMount™系统提供无错电机安装。
  • 特别
  • 特别

Dimensions

dimensions
尺寸价值
[L]

Specifications

Specifications价值
Bolt Tightening Torque - Pre1.8 Nm
DutyCyclical Duty
Efficiency93%
RPM Maximum, Input4000 转每分
RPM Maximum, Output1000 转每分
Shaft - Single/Dual/Hollow单
Weight5.7 kg
材质不锈钢输出轴,阳极电镀铝合金外壳
侧隙8 弧-分
传动比:1
方形法兰115 毫米
级数
螺旋冠状Spur gearing
拧紧力矩 - 最终36 Nm
使用Redi安装RM115-52S (SPL. O/P, SPL. I/P PINION) (SPECIAL RM)
外壳材料阳极氧化铝
允许直接冲洗否
直列,直角直连
轴材料不锈钢输出轴

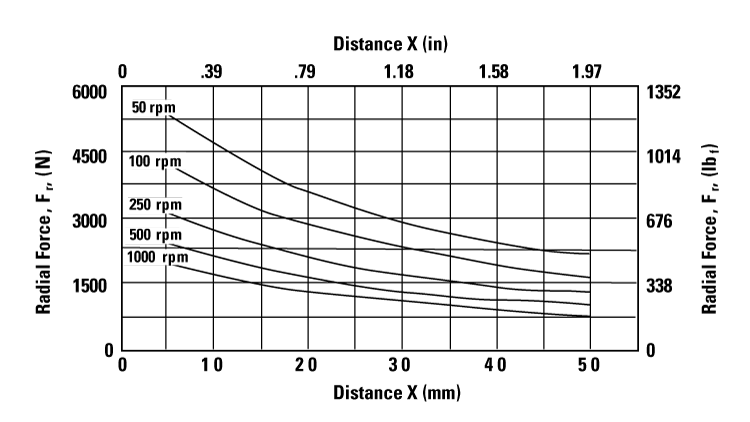

Performance

performance graphic
performance graphic
