8106-448-010

Ball Nut

Ball Nut, 0.631 in X 0.200 in, Square, No Safety Feature, Non-Preloaded, 捡拾齿, 800 lbf

仅螺母
经过质量检测，确保可靠的性能
具有可靠的精度和可重复性，且价格实惠

尺寸

Dimension	Value
A	43.69 mm (1.720 in)
B	12.83 mm (0.505 in)
C	25.53 mm (1.005 in)
D	33.02 mm (1.300 in)
E	20.24 mm (0.797 in)
F	20.32 mm (0.800 in)
TH	15/16-16 UN-2A

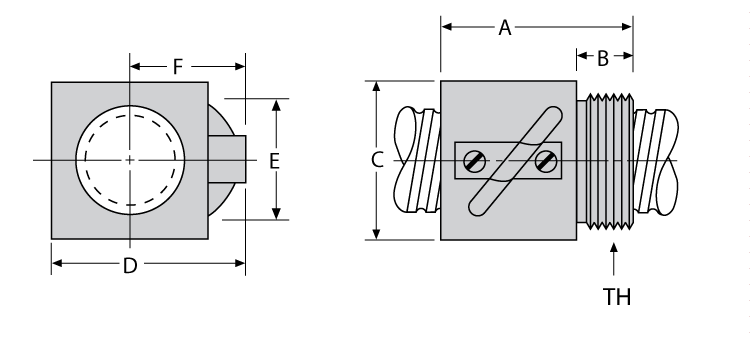

dimensions

Dimension	Value
A	43.69 mm (1.720 in)
B	12.83 mm (0.505 in)
C	25.53 mm (1.005 in)
D	33.02 mm (1.300 in)
E	20.24 mm (0.797 in)
F	20.32 mm (0.800 in)
TH	15/16-16 UN-2A
