ECT09-B53R10LP3220-0500XK00XX-

ECT09-B53R10LP3220-0500XK00XX-

Download Full Catalog

ECT09-B53R10LP3220-0500XK00XX-

Can't find what you're looking for? Go to the Product Selector

ECT09-B53R10LP3220-0500XK00XX-

执行器，精密, ECT90, brushless AC servo motor, Planetary Gear Drive, Inline, 500 毫米 Stroke, 20 毫米 Travel Per Shaft Rev, No Brake, 20000 N

无刷交流伺服电机
挤压成型阳极电镀铝合金套管
阳极氧化铝合金外壳
硬铬钢延长管
坚固、可靠
标配IP65，可选用冲洗防护型
可安装在任意方向
安装附件符合适用的液压缸标准
广泛的选项和附件

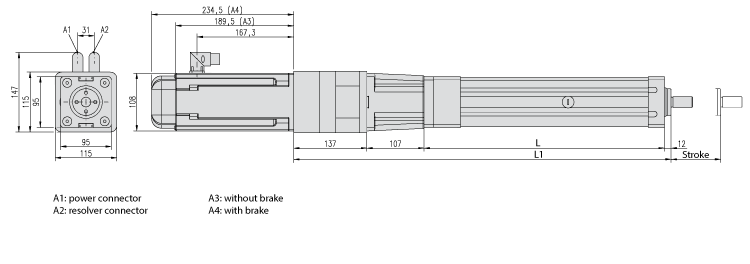

Dimensions

dimensions

尺寸	价值
[B]	12 毫米
[L]	730 毫米
[L1]	986 毫米
Smax（行程）	500 毫米
Travel Per Shaft Rev	20 毫米
丝杠直径，标称	32 毫米

Specifications

Specifications	价值
Adapter Options, Rod End	Spherical Joint, 20mm dia
Brake	No Brake
Cylinder Mounting Options	No Mounting option included
Drive Type	Planetary Gear Drive, Inline
Magnetic Sensor NC	0
Magnetic Sensor NO	0
Motor Type	brushless AC servo motor
Profile Size	90 x 92 mm
Resolver	with Resolver
Weight	33.8 kg
传动比：1	10
防护等级	IP65
丝杠类型	滚珠丝杆

Performance

performance graphic

performance graphic

performance graphic

Performance	价值
Maximum Linear Speed	130 毫米每秒
Repeatability	0.05 毫米
负载，动态	20000 N
