MLA23A15-0787S0250-C3-S03

MLA23A15-0787S0250-C3-S03

没有找到想要的产品？请使用产品选择工具

产品选择工具
MLA23A15-0787S0250-C3-S03
电动梯形丝杠执行器

Actuator, NEMA 23, Single stack, 1.550 Amp, 63.5000 mm stroke, mm x 20.000 standard accuracy, C3 end mounting

CAD模型
联系我们
  • 集混合式步进电机和全密闭精密梯形丝杠于一身，且外形紧凑。
  • 我们的执行器配置包括防旋转装置（所有产品的标配），因此无需外部导向。
  • 由于组件内部的衬套设计，执行器配置能够承受部分侧向负载和弯矩负载。
Click here to optimize your design with a custom stepper motor linear actuator solution.

尺寸

尺寸
Dimension Value
[Stroke] 63.5000
[L] 65.2400
[Lm] 45.2 mm (1.78 in)
尺寸
Dimension Value
[L2] 18.1 mm (0.71 in)
[L3] 12.7 mm (0.50 in)
[t] 3.4 mm (0.14 in)
[T] 22.0 mm (0.87 in)
[W] 11.0 mm (0.43 in)
[THD] 1/4-20

规格

Specification Value
Motor Frame Size NEMA 23
Motor Stack Size Single
Motor Body Length 45 mm / 1.78 in
Motor Current Rating 1.55 amps
Recommended Drive Current 2.12 amps
Connector Type #22 AWG飞线
Holding Torque 0.85 N·m / 120.94 ozf·in
Step Angle 1.8°
Voltage Per Phase 3.77 V
Resistance 2.43 Ω
Inductance 4.20 mH
Power Draw 5.84 W
Rotor Inertia 4.57 g/cm² / 1.04 oz/in²
Dielectric Strength 500 VAC持续一分钟
Insulation Resistance 100 Mohm @ 500 VDC
Magnet Wire Insulation Class B 266 F
Motor Weight 0.51 kg / 1.13 lbs
Axial Preload 178.00 N / 40.02 lbf
Lead Screw Part Number SRA6-10X3.3M
Lead Screw Diameter 10.00 mm / 0.394 in
Linear Travel per Revolution 20.00 mm / 0.787 in
Linear Travel Per Step 0.1000 mm / 0.00394 in
Thread Direction RH
Stroke Length 63.50 mm / 2.50 in
Accuracy Grade Standard
Lead Accuracy 250 µm/300mm / 0.01 in/ft
Lead Screw Straightness 125 µm/300mm / 0.005 in/ft
Lead Screw Material 300系列不锈钢
End Mounting C3 = 1/4-20 male thread
Nut Part Number 23CN-01
Ambient Temperature Max 122 °F / 50 C
Ambient Temperature Min -4 °F / -20 C
Storage Temperature Max 122 °F / 50 C
Storage Temperature Min -4 °F / -20 C
Encoder Index No

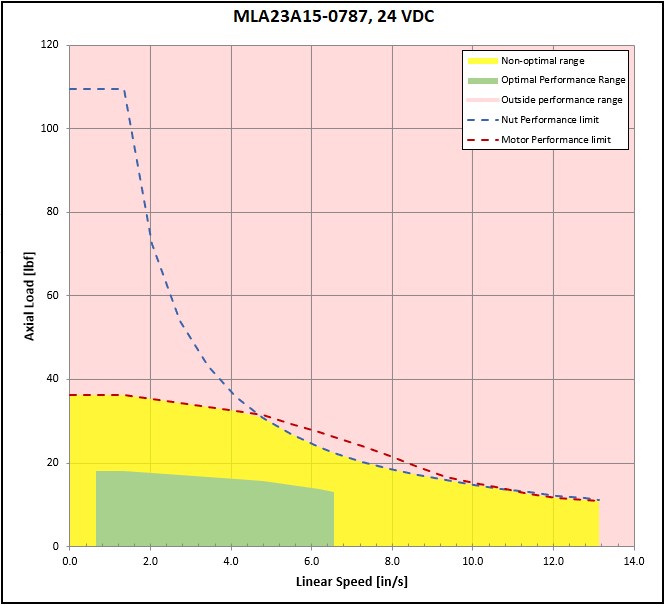

性能

Performance
Performance
Performance Value
Max Dynamic Load @ 12v 84.1 N / 18.9 lbf
Max Dynamic Load @ 24v 86.3 N / 19.4 lbf
Max Dynamic Load @ 40v 87.2 N / 19.6 lbf
Dynamic Load at Max Speed @ 12v 25.4 N / 5.7 lbf @ 166.62 mm/s / 6.56 in/s
Dynamic Load at Max Speed @ 24v 60.9 N / 13.7 lbf @ 166.62 mm/s / 6.56 in/s
Dynamic Load at Max Speed @ 40v 76.1 N / 17.1 lbf @ 166.62 mm/s / 6.56 in/s
Recommended Max Axial Load 890 N / 200 lbf
Max Side Load 10% of Axial Load
Max Case Temperature 176 °F / 80 C
Operating Temperature Max 122 °F / 50 C
Operating Temperature Min 14 °F / -10 C
