旋转螺母

Rotating Nut, NEMA 14, Single stack, 1.350 Amp Ø6.000 mm x 1.000 mm lead screw, 203.000 mm length, Standard accuracy, C6 front end machining, A0 back end machining

Min: 34.036 mm Max: 406.4 mm

A hybrid stepper motor and a precision lead screw together in one compact envelope.
Higher torque density than the competition.
Improved efficiency.
Reduced noise.

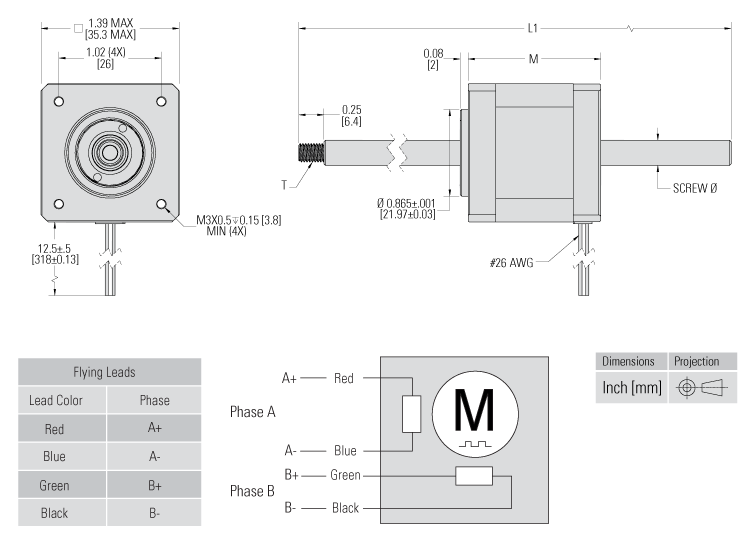

尺寸

Dimension	Value
Ls	203.00 mm (7.99 in)
Lm	34.04 mm (1.340 in)
L3F	6.35 mm (0.25 in)
THDF	M4X0.7

Dimension	Value
Ls	203.00 mm (7.99 in)
Lm	34.04 mm (1.340 in)
L3F	6.35 mm (0.25 in)
THDF	M4X0.7

规格

Specification	Value
Motor Frame Size	NEMA 14
Motor Stack Size	Single
Motor Body Length	34 mm / 1.34 in
Motor Current Rating	1.35 amps
Recommended Drive Current	1.83 amps
Connector Type	#26 AWG飞线
Holding Torque	0.16 N·m / 23.22 ozf·in
Step Angle	1.8°
Voltage Per Phase	1.71 V
Resistance	1.27 Ω
Inductance	1.79 mH
Power Draw	2.31 W
Rotor Inertia	0.44 g/cm² / 0.10 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.19 kg / 0.41 lbs
Axial Preload	133.50 N / 30.01 lbf
Lead Screw Part Number	SRA6X1M
Lead Screw Diameter	6.00 mm / 0.236 in
Linear Travel per Revolution	1.00 mm / 0.039 in
Linear Travel Per Step	0.0050 mm / 0.00020 in
Thread Direction	RH
Stroke Length	203.00 mm / 7.99 in
Accuracy Grade	Standard
Lead Accuracy	250 µm/300mm / 0.01 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	C6 = M4x0.7 x 6.35 mm threaded end
Rear End Machining	A0 = No Machining
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

性能

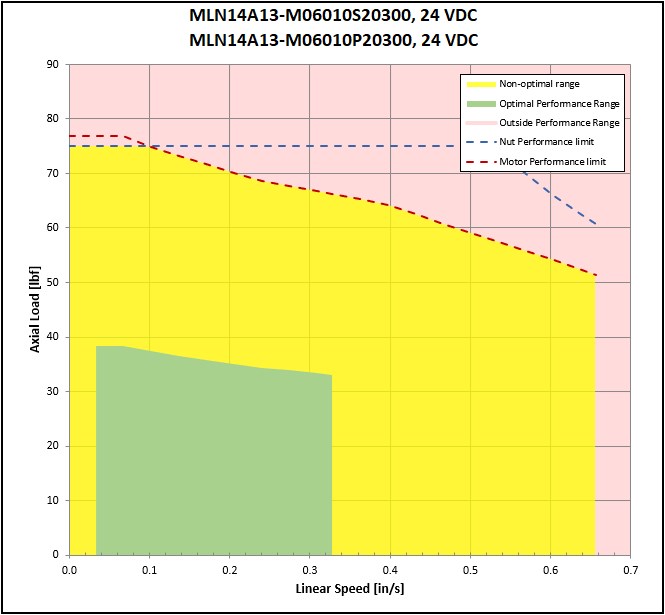

Performance

Performance

Performance	Value
Max Dynamic Load @ 12v	161.5 N / 36.3 lbf
Max Dynamic Load @ 24v	165.0 N / 37.1 lbf
Max Dynamic Load @ 40v	166.8 N / 37.5 lbf
Dynamic Load at Max Speed @ 12v	107.6 N / 24.2 lbf @ 8.38 mm/s / 0.33 in/s
Dynamic Load at Max Speed @ 24v	138.8 N / 31.2 lbf @ 8.38 mm/s / 0.33 in/s
Dynamic Load at Max Speed @ 40v	148.1 N / 33.3 lbf @ 8.38 mm/s / 0.33 in/s
Recommended Max Axial Load	223 N / 50 lbf
Max Case Temperature	176 °F / 80 C
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C
