Rotating Nut, NEMA 23, Single stack, 3.000 Amp Ø8.000 mm x 8.000 mm lead screw, 305.000 mm length, Standard accuracy, C7 front end machining, A0 back end machining

Min: 48.006 mm Max: 812.8 mm

A hybrid stepper motor and a precision lead screw together in one compact envelope.
Higher torque density than the competition.
Improved efficiency.
Reduced noise.

尺寸

Dimension	Value
Ls	305.00 mm (12.01 in)
Lm	45.21 mm (1.780 in)
L3F	9.53 mm (0.38 in)
THDF	M5X0.8

Dimension	Value
Ls	305.00 mm (12.01 in)
Lm	45.21 mm (1.780 in)
L3F	9.53 mm (0.38 in)
THDF	M5X0.8

规格

Specification	Value
Motor Frame Size	NEMA 23
Motor Stack Size	Single
Motor Body Length	45 mm / 1.78 in
Motor Current Rating	3.00 amps
Recommended Drive Current	4.23 amps
Connector Type	#22 AWG飞线
Holding Torque	0.87 N·m / 123.77 ozf·in
Step Angle	1.8°
Voltage Per Phase	1.74 V
Resistance	0.58 Ω
Inductance	1.16 mH
Power Draw	5.22 W
Rotor Inertia	4.57 g/cm² / 1.04 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.51 kg / 1.13 lbs
Axial Preload	178.00 N / 40.02 lbf
Lead Screw Part Number	SRA4-8X2M
Lead Screw Diameter	8.00 mm / 0.315 in
Linear Travel per Revolution	8.00 mm / 0.315 in
Linear Travel Per Step	0.0400 mm / 0.00157 in
Thread Direction	RH
Stroke Length	305.00 mm / 12.01 in
Accuracy Grade	Standard
Lead Accuracy	250 µm/300mm / 0.01 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	C7 = M5x0.8 x 9.53 mm threaded end
Rear End Machining	A0 = No Machining
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

性能

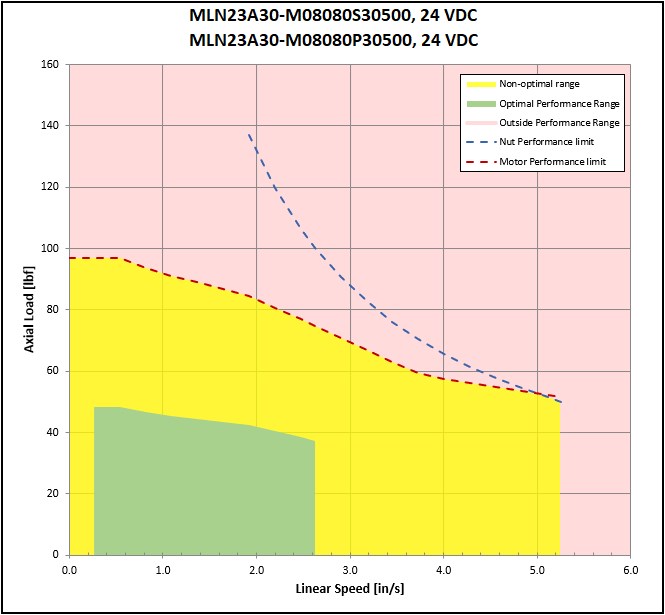

Performance

Performance

Performance	Value
Max Dynamic Load @ 12v	210.4 N / 47.3 lbf
Max Dynamic Load @ 24v	217.1 N / 48.8 lbf
Max Dynamic Load @ 40v	219.7 N / 49.4 lbf
Dynamic Load at Max Speed @ 12v	112.1 N / 25.2 lbf @ 66.80 mm/s / 2.63 in/s
Dynamic Load at Max Speed @ 24v	161.9 N / 36.4 lbf @ 66.80 mm/s / 2.63 in/s
Dynamic Load at Max Speed @ 40v	189.5 N / 42.6 lbf @ 66.80 mm/s / 2.63 in/s
Recommended Max Axial Load	890 N / 200 lbf
Max Case Temperature	176 °F / 80 C
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C
