MLN23B19-M10100S40600N-C8A0-XXX

MLN23B19-M10100S40600N-C8A0-XXX

下载完整产品目录

打印技术规格

MLN23B19-M10100S40600N-C8A0-XXX

没有找到想要的产品？请使用产品选择工具

MLN23B19-M10100S40600N-C8A0-XXX

旋转螺母

Rotating Nut, NEMA 23, Double stack, 1.900 Amp Ø10.000 mm x 10.000 mm lead screw, 406.000 mm length, Standard accuracy, C8 front end machining, A0 back end machining

Min: 54.102 mm Max: 812.8 mm

A hybrid stepper motor and a precision lead screw together in one compact envelope.
Higher torque density than the competition.
Improved efficiency.
Reduced noise.

尺寸

Dimension	Value
Ls	406.00 mm (15.98 in)
Lm	65.79 mm (2.590 in)
L3F	12.70 mm (0.50 in)
THDF	M6X1.0

Dimension	Value
Ls	406.00 mm (15.98 in)
Lm	65.79 mm (2.590 in)
L3F	12.70 mm (0.50 in)
THDF	M6X1.0

规格

Specification	Value
Motor Frame Size	NEMA 23
Motor Stack Size	Double
Motor Body Length	66 mm / 2.59 in
Motor Current Rating	1.90 amps
Recommended Drive Current	2.68 amps
Connector Type	#22 AWG飞线
Holding Torque	1.77 N·m / 251.08 ozf·in
Step Angle	1.8°
Voltage Per Phase	3.80 V
Resistance	2.00 Ω
Inductance	5.84 mH
Power Draw	7.22 W
Rotor Inertia	9.36 g/cm² / 2.13 oz/in²
Dielectric Strength	500 VAC持续一分钟
Insulation Resistance	100 Mohm @ 500 VDC
Magnet Wire Insulation	Class B 266 F
Motor Weight	0.77 kg / 1.70 lbs
Axial Preload	178.00 N / 40.02 lbf
Lead Screw Part Number	SRA5-10X2M
Lead Screw Diameter	10.00 mm / 0.394 in
Linear Travel per Revolution	10.00 mm / 0.394 in
Linear Travel Per Step	0.0500 mm / 0.00197 in
Thread Direction	RH
Stroke Length	406.00 mm / 15.98 in
Accuracy Grade	Standard
Lead Accuracy	250 µm/300mm / 0.01 in/ft
Lead Screw Straightness	125 µm/300mm / 0.005 in/ft
Lead Screw Material	300系列不锈钢
Lead Screw Coating	No Coating
Front End Machining	C8 = M6x1.0 x 12.70 mm threaded end
Rear End Machining	A0 = No Machining
Ambient Temperature Max	122 °F / 50 C
Ambient Temperature Min	-4 °F / -20 C
Storage Temperature Max	122 °F / 50 C
Storage Temperature Min	-4 °F / -20 C
Encoder Part Number	None

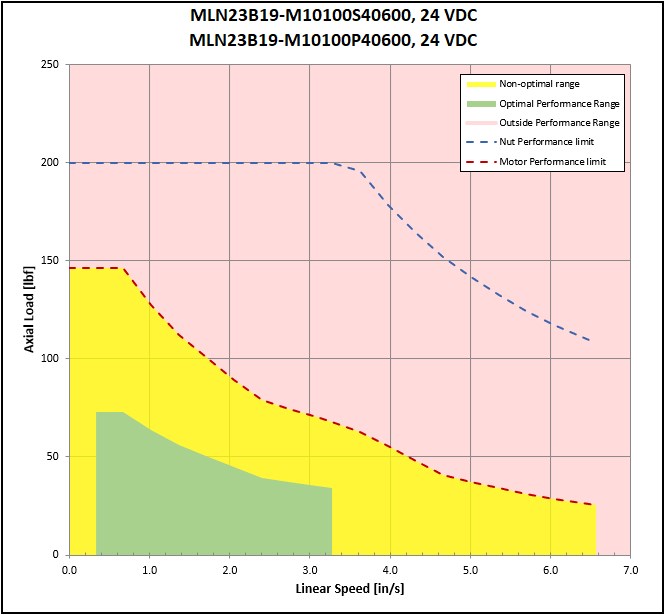

性能

Performance

Performance

Performance	Value
Max Dynamic Load @ 12v	318.9 N / 71.7 lbf
Max Dynamic Load @ 24v	358.1 N / 80.5 lbf
Max Dynamic Load @ 40v	373.6 N / 84.0 lbf
Dynamic Load at Max Speed @ 12v	54.7 N / 12.3 lbf @ 83.31 mm/s / 3.28 in/s
Dynamic Load at Max Speed @ 24v	147.2 N / 33.1 lbf @ 83.31 mm/s / 3.28 in/s
Dynamic Load at Max Speed @ 40v	199.7 N / 44.9 lbf @ 83.31 mm/s / 3.28 in/s
Recommended Max Axial Load	890 N / 200 lbf
Max Case Temperature	176 °F / 80 C
Operating Temperature Max	122 °F / 50 C
Operating Temperature Min	14 °F / -10 C

订购代码

order code
