MLS11A10-M06010P20300N-A000-RS2
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 11, Single stack, 1.000 Amp Ø6.000 mm x 1.000 mm lead screw, 203.000 mm length, Precision accuracy, A0 front end machining, RSF2500
梯形丝杠长度:
Min: 19.05 mm Max: 406.4 mm
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 203.00 mm (7.99 in) |
| Lm | 32.00 mm (1.260 in) |
| Ln | 19.05 mm (0.750 in) |
| AN | 12.70 mm (0.50 in) |
| BN | 19.05 mm (0.75 in) |
| DN | 25.40 mm (1.00 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 3.81 mm (0.15 in) |
| IN | 7.87 mm (0.31 in) |
| BCDN | 19.05 mm (0.75 in) |

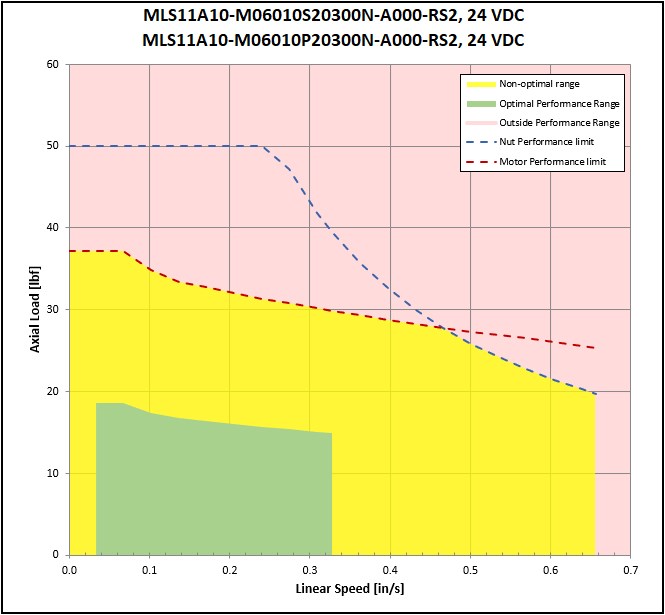

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 78.3 N / 17.6 lbf |
| Max Dynamic Load @ 24v | 82.7 N / 18.6 lbf |
| Max Dynamic Load @ 40v | 84.5 N / 19.0 lbf |
| Dynamic Load at Max Speed @ 12v | 53.4 N / 12.0 lbf @ 8.38 mm/s / 0.33 in/s |
| Dynamic Load at Max Speed @ 24v | 62.7 N / 14.1 lbf @ 8.38 mm/s / 0.33 in/s |
| Dynamic Load at Max Speed @ 40v | 67.6 N / 15.2 lbf @ 8.38 mm/s / 0.33 in/s |
| Recommended Max Axial Load | 89 N / 20 lbf |
| Max Case Temperature | 140 °F / 60 C |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 122 °F / 50 C |
| Operating Temperature Min | 14 °F / -10 C |
