MLS14A13-M06120S20300N-A000-RS2
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 14, Single stack, 1.350 Amp Ø6.000 mm x 12.000 mm lead screw, 203.000 mm length, Standard accuracy, A0 front end machining, RSF2500
梯形丝杠长度:
Min: 19.05 mm Max: 406.4 mm
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 203.00 mm (7.99 in) |
| Lm | 34.04 mm (1.340 in) |
| Ln | 19.05 mm (0.750 in) |
| AN | 12.70 mm (0.50 in) |
| BN | 19.05 mm (0.75 in) |
| DN | 25.40 mm (1.00 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 3.81 mm (0.15 in) |
| IN | 7.87 mm (0.31 in) |
| BCDN | 19.05 mm (0.75 in) |

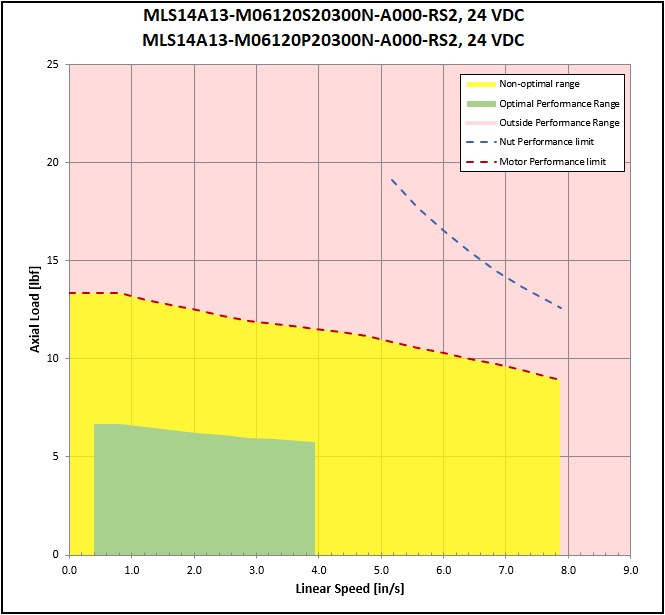

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 29.4 N / 6.6 lbf |
| Max Dynamic Load @ 24v | 29.8 N / 6.7 lbf |
| Max Dynamic Load @ 40v | 30.3 N / 6.8 lbf |
| Dynamic Load at Max Speed @ 12v | 19.6 N / 4.4 lbf @ 99.82 mm/s / 3.93 in/s |
| Dynamic Load at Max Speed @ 24v | 25.4 N / 5.7 lbf @ 99.82 mm/s / 3.93 in/s |
| Dynamic Load at Max Speed @ 40v | 26.7 N / 6.0 lbf @ 99.82 mm/s / 3.93 in/s |
| Recommended Max Axial Load | 223 N / 50 lbf |
| Max Case Temperature | 176 °F / 80 C |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 122 °F / 50 C |
| Operating Temperature Min | 14 °F / -10 C |
