MLS17A10-370083S16000N-A000-RS3
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 17, Single stack, 1.000 Amp Ø0.375 in x 0.083 in lead screw, 16.000 in length, Standard accuracy, A0 front end machining, RSF3700
梯形丝杠长度:
Min: 1.0 in Max: 32.0 in
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 406.40 mm (16.00 in) |
| Lm | 34.04 mm (1.340 in) |
| Ln | 25.40 mm (1.000 in) |
| AN | 16.00 mm (0.63 in) |
| BN | 25.40 mm (1.00 in) |
| DN | 31.75 mm (1.25 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 4.83 mm (0.19 in) |
| IN | 10.41 mm (0.41 in) |
| BCDN | 22.23 mm (0.88 in) |

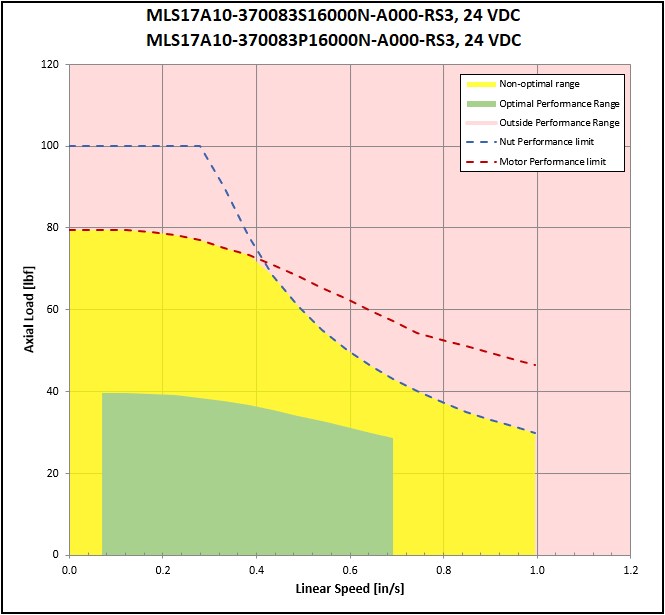

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 168.1 N / 37.8 lbf |
| Max Dynamic Load @ 24v | 169.5 N / 38.1 lbf |
| Max Dynamic Load @ 40v | 169.9 N / 38.2 lbf |
| Dynamic Load at Max Speed @ 12v | 72.1 N / 16.2 lbf @ 17.53 mm/s / 0.69 in/s |
| Dynamic Load at Max Speed @ 24v | 121.4 N / 27.3 lbf @ 17.53 mm/s / 0.69 in/s |
| Dynamic Load at Max Speed @ 40v | 152.6 N / 34.3 lbf @ 17.53 mm/s / 0.69 in/s |
| Recommended Max Axial Load | 334 N / 75 lbf |
| Max Case Temperature | 80 °C / 176 °F |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 52 °C / 125 F |
| Operating Temperature Min | -9 °C / 15 F |
