MLS17B10-M06060S20300N-A000-RS2
没有找到想要的产品？请使用产品选择工具
旋转丝杠
Rotating Screw, NEMA 17, Double stack, 1.000 Amp Ø6.000 mm x 6.000 mm lead screw, 203.000 mm length, Standard accuracy, A0 front end machining, RSF2500
梯形丝杠长度:
Min: 19.05 mm Max: 406.4 mm
配置编码器
- 集混合式步进电机和精密梯形丝杠于一身，且外形紧凑。
- 力矩密度比竞争产品更高。
- 效率更高。
- 噪音更低。
| Dimension | Value |
|---|---|
| Ls | 203.00 mm (7.99 in) |
| Lm | 48.01 mm (1.890 in) |
| Ln | 19.05 mm (0.750 in) |
| AN | 12.70 mm (0.50 in) |
| BN | 19.05 mm (0.75 in) |
| DN | 25.40 mm (1.00 in) |
| EN | 3.56 mm (0.14 in) |
| FN | 3.81 mm (0.15 in) |
| IN | 7.87 mm (0.31 in) |
| BCDN | 19.05 mm (0.75 in) |

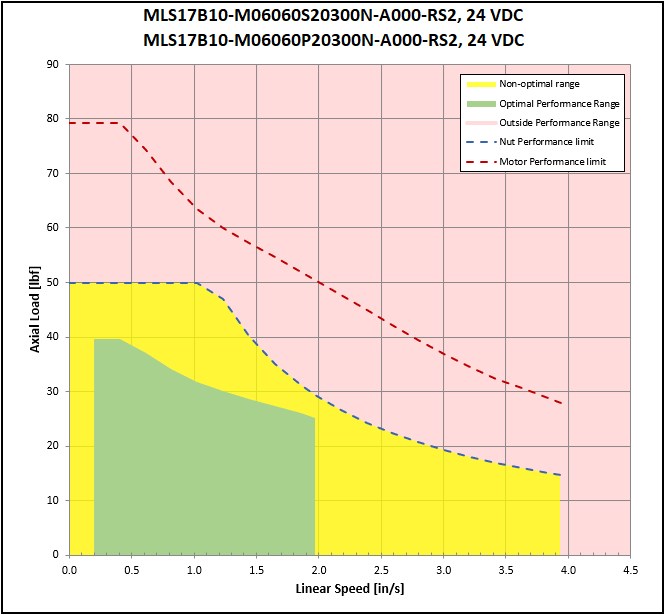

| Performance | Value |
|---|---|
| Max Dynamic Load @ 12v | 172.1 N / 38.7 lbf |
| Max Dynamic Load @ 24v | 178.8 N / 40.2 lbf |
| Max Dynamic Load @ 40v | 181.5 N / 40.8 lbf |
| Dynamic Load at Max Speed @ 12v | 60.5 N / 13.6 lbf @ 50.04 mm/s / 1.97 in/s |
| Dynamic Load at Max Speed @ 24v | 109.4 N / 24.6 lbf @ 50.04 mm/s / 1.97 in/s |
| Dynamic Load at Max Speed @ 40v | 125.9 N / 28.3 lbf @ 50.04 mm/s / 1.97 in/s |
| Recommended Max Axial Load | 334 N / 75 lbf |
| Max Case Temperature | 176 °F / 80 C |
| Minimum Linear Travel Life | 127,000,000 mm / 5,000,000 in |
| Backlash Type | Standard Backlash |
| Operating Temperature Max | 122 °F / 50 C |
| Operating Temperature Min | 14 °F / -10 C |
