MLSM08Z200-02500-03100BN0000-7

直线运动单元, MLSM, 皮带 Drive, 滚珠 Guide, 0.05 毫米 Repeatability, 2500 毫米 Stroke, 3100 毫米 Overall Length, 单个标准滑块, 200 毫米 Travel Per Shaft Rev, Shaft On Right Side Without Keyway, 5000 Maximum Linear Speed

取代
专利塑料带盖
高负载能力
低断面高度

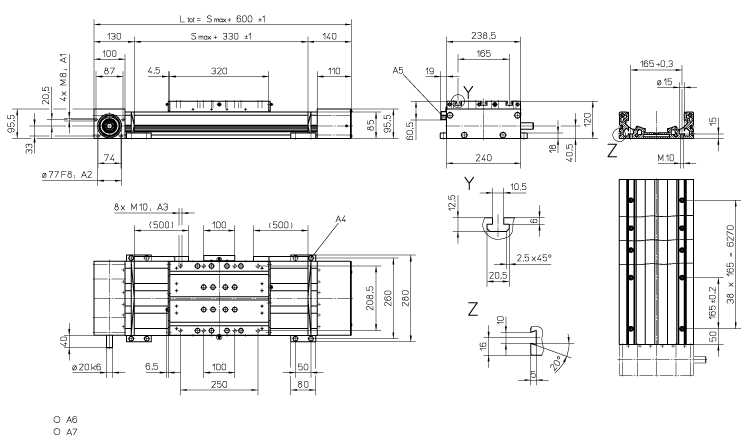

Dimensions

尺寸	价值
Ltot	3100 毫米
Smax（行程）	2500 毫米
Travel Per Shaft Rev	200 毫米

Specifications

Specifications	价值
Belt Type	75 ATL 10
Carriage Type	单个标准滑块
Drive	皮带
Guide	滚珠
Profile size (width × height)	240 x 85 mm
Shaft Configuration	Shaft On Right Side Without Keyway
Shaft Orientation	Right Angle
Shaft Quantity	Single Shaft
Weight	95.4 kg
保护选项	Standard Protection

Performance

Performance	价值
Input speed, maximum	1500 转每分
Maximum Acceleration	20 m/s²
Maximum Linear Speed	5000
Repeatability	0.05 毫米

MLSM08Z200-02500-03100BN0000-7

Dimensions

Specifications

Performance

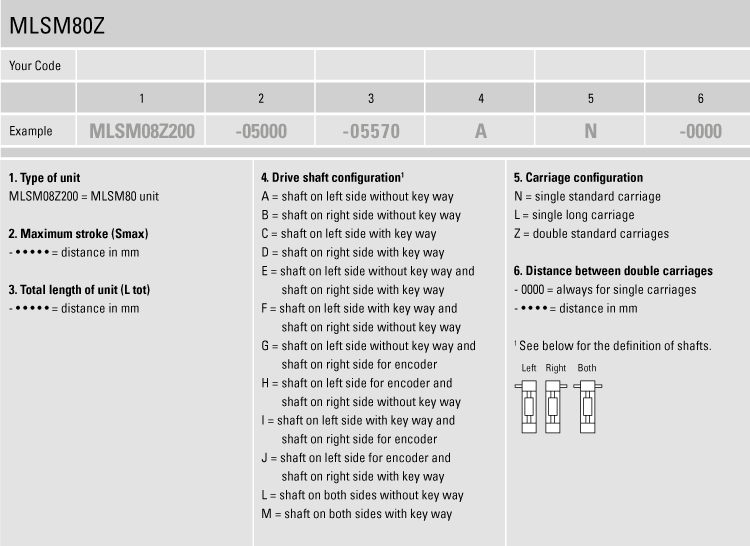

Order Code
