PC32LX367B04-0100TM1

PC32LX367B04-0100TM1

Download Full Catalog

PC32LX367B04-0100TM1

Can't find what you're looking for? Go to the Product Selector

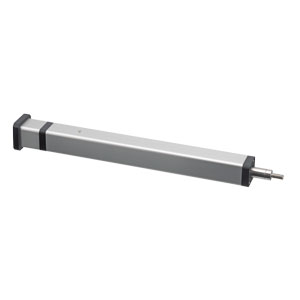

PC32LX367B04-0100TM1

执行器，精密, Motor not included, Direct Drive, Inline, 100 毫米 Stroke, 4 毫米 Travel Per Shaft Rev, No Brake, 3200 N

紧凑、坚固、可靠
标准防护等级为IP65
高精度滚珠螺母
不锈钢延长管
不锈钢外螺纹杆接头
单点润滑
大直径滚珠丝杠
平滑外轮廓
安装附件符合气动ISO标准

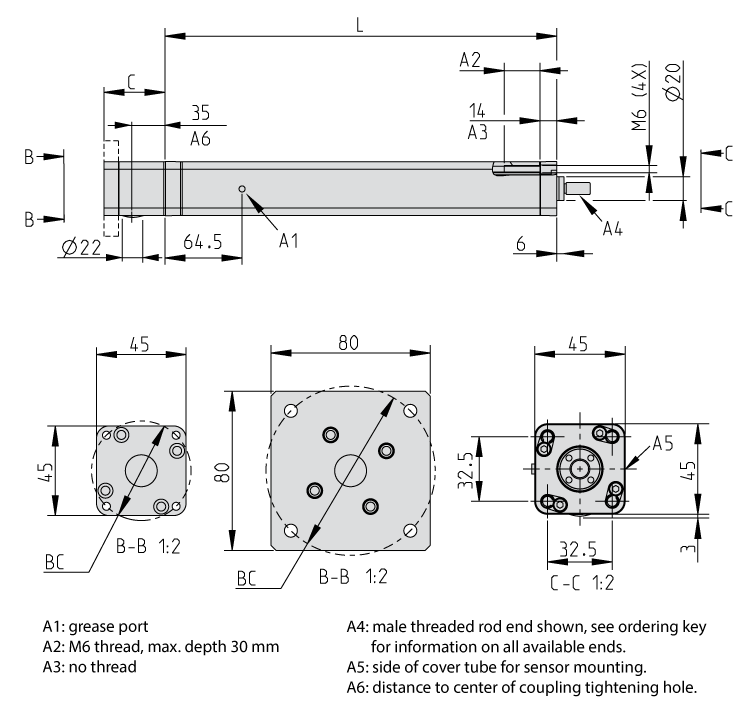

Dimensions

dimensions

尺寸	价值
[L]	205 毫米
Smax（行程）	100 毫米
Travel Per Shaft Rev	4 毫米
丝杠直径，标称	12 毫米

Specifications

Specifications	价值
Adapter Options, Rod End	Male thread, M10x1.25
Brake	No Brake
Cylinder Mounting Options	Trunnion, Front
Drive Type	Direct Drive, Inline
Motor Type	Motor not included
Profile Size	45 x 45 mm
Temperature Max	70 °C
Temperature Min	-20 °C
Weight	1 kg
防护等级	IP65
丝杠类型	滚珠丝杆

Performance

Performance	价值
Input speed, maximum	6000 转每分
Maximum Acceleration	10 m/s²
Maximum Linear Speed	400
Repeatability	0.01 毫米
负载，动态	3200 N
