T13-B5010MS127-66

T13-B5010MS127-66

Download Full Catalog

T13-B5010MS127-66

Can't find what you're looking for? Go to the Product Selector

T13-B5010MS127-66

执行器，精密, T130, Motor not included, Direct Drive, Inline, 845 毫米 Stroke, 10 毫米 Travel Per Shaft Rev, No Brake, 60000 N

Motor not included. For units with motors see the ECT series.
Extruded anodized aluminum cover tube
Anodized aluminum housing
Hard chromed steel extension tube
Ball screw drive
Slide guides

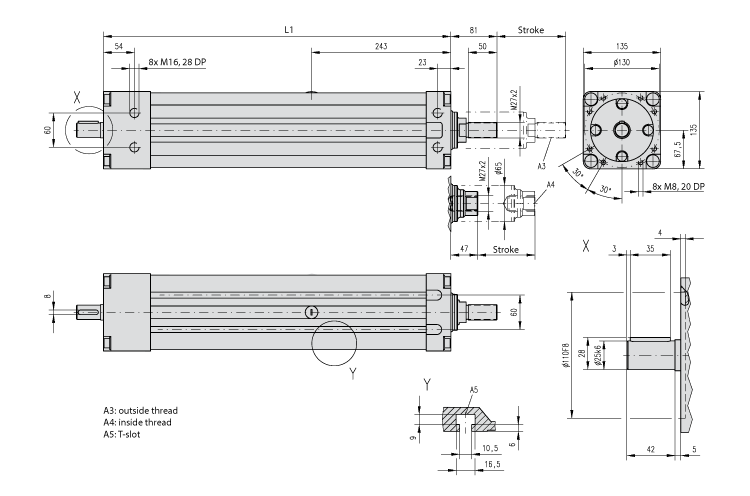

Dimensions

dimensions

尺寸	价值
[L1]	1270 毫米
Smax（行程）	845 毫米
Travel Per Shaft Rev	10 毫米
丝杠直径，标称	50 毫米

dimensions

尺寸	价值
[L1]	1270 毫米
Smax（行程）	845 毫米
Travel Per Shaft Rev	10 毫米
丝杠直径，标称	50 毫米
