WM08Z170-00300-01060-LL0000-35

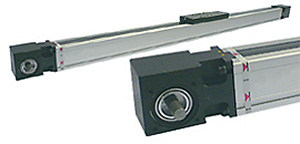

直线运动单元, WM80Z, 皮带 Drive, 滚珠 Guide, 0.05 毫米 Repeatability, 300 毫米 Stroke, 1060 毫米 Overall Length, 单长滑块, 170 毫米 Travel Per Shaft Rev, Shaft On Both Sides Without Keyway, 2507.5 Maximum Linear Speed

取代
中央润滑所有需润滑零件

Specifications

Specifications	价值
Belt Type	25 AT 10
Carriage Type	单长滑块
Drive	皮带
Guide	滚珠
Profile size (width × height)	80 x 80 mm
Shaft Configuration	Shaft On Both Sides Without Keyway
Shaft Orientation	Right Angle
Shaft Quantity	Double Shafts
Weight	18.7 kg
保护选项	Standard Protection

WM08Z170-00300-01060-LL0000-35

Specifications

Performance

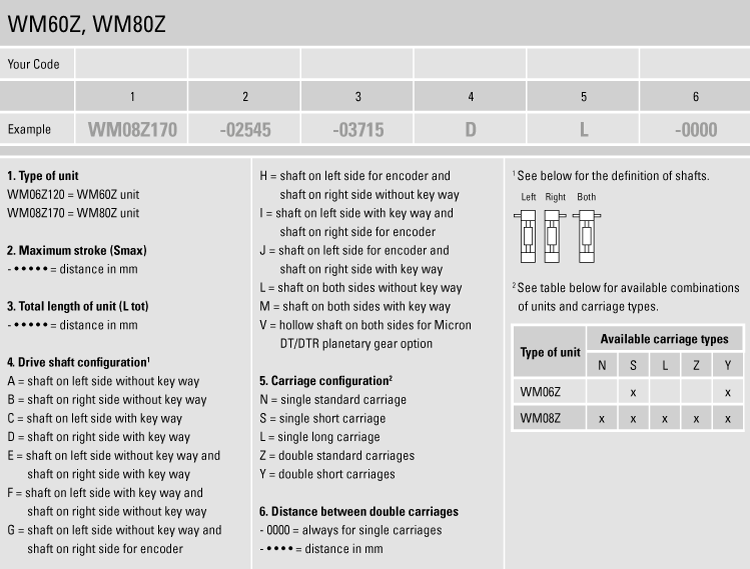

Order Code

Get Quote

Performance	价值
Input speed, maximum	885 转每分
Maximum Acceleration	20 m/s²
Maximum Linear Speed	2507.5
Repeatability	0.05 毫米
